Marconi R1475 / RG44

Desktop Shortwave receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

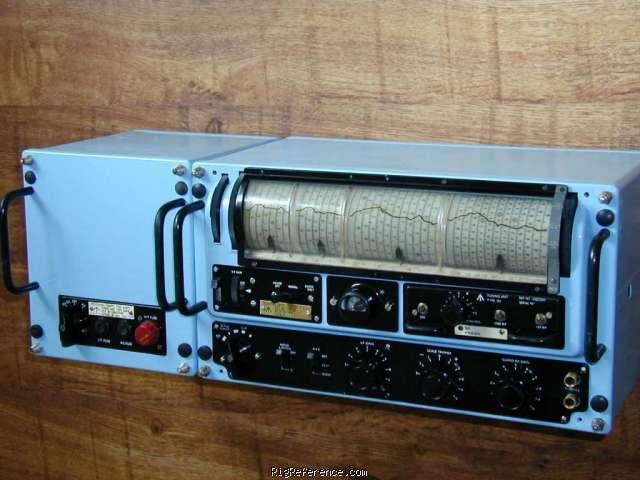

Front view, including matching PSU - Submitted by elmer

Find Marconi R1475 / RG44 rigs and spare parts on eBay

Find the Marconi R1475 / RG44 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The Marconi R1475 is a general coverage HF receiver used for naval and airborne operations. The R1475 requires a type 360/458 PSU.

General characteristics

HAM bands: 80m 60m 40m 30m (WARC) 20m 17m (WARC)
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 2-20 MHz in 4 bands
Modulations: -
Sensitivity: ?
Selectivity: ?
Filters: 3 switch-selected bandwidths available; 5 kc/s,1200 c/s and 300 c/s, including LF filters.
Receiver system: Single conversion
IF-frequencies: 601.3 kHz
Image rejection: ?
Audio output: ?

Connections

Antenna: Proprietary (military)
Impedance: 50Ω
Other: -

Electrical

Power requirements: 200-250V AC / 12V DC
Current drain RX: 60 W
TX: -

Physical

Dimensions (w×h×d): 413 × 222 × 286 mm (16.26 × 8.74 × 11.26 in)
Weight: 18.30 kg (40.4 lbs)
Form factor: Base Station
Manufactured: Between 194x and 19xx

Other features

Usage: Military communication
Features + options: -
Accessories: -
RigReference ID: 5171
MPN: MARCONI-R001475-RG44

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
