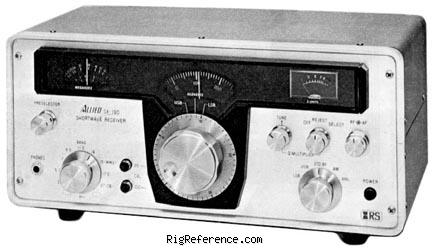

The RadioShack AX-190 (also sold under the Allied brand name) is a general coverage receiver. It covers all short-wave bands between 80 and 10 meters (3.5-4, 5.7-6.2, 7-7.5, 9.5-10, 11.5-12, 14-14.5, 15-15.5, 17.5-18 and 27-27.5 MHz) plus one optional 500 kHz band. An external speaker was available in the form of the SP-190.
Original price: USD 250.00
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 80-10m
- Modulations
- AM CW USB LSB
- Sensitivity
- ?
- Selectivity
- 4 kHz
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SO-239
- Impedance
- 50/75 Ω
- Other
- -
Electrical
- Power requirements
- Mains or 12V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 381 × 178 × 254 mm (15.00 × 7.01 × 10.00 in)
- Weight
- 9.00 kg (19.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1971 and 1973
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- ¼" Head. Jack, S-Meter, Preselector, NL, Calibrator, AGC, Q-Multiplier, Record Jack, Mute Line, RF Gain, HFO Output.
- Accessories
- -
- RigReference ID
- 5178
- MPN
- RADIOSHACK-/-REALISTIC-SX-000190
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic SX-190. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the RadioShack / Realistic SX-190 is around:
- USD 214.00
These estimates are based on the following prices:
