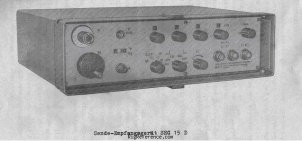

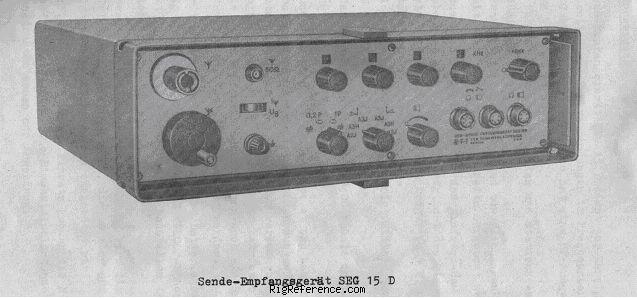

The SEG 15 (SEG = Sende - Empfang Gerät) made by the East German RFT company was intended for both military and marine use. The versatile rig can be used stationary, mobile and portable. It requires 24V DC, but converters for both 12V DC and 110/220V AC were available. A battery compartment which could accommodate 20 different battery types (!) could also be attached to the back. The 12V converter could also be used as a voltage stabilizer for both 12 and 24V.
Tuning is done with 4 decade switches in 1 kHz steps. A clarifier tunes an additional +/- 500 Hz.
The SEG 15 has a connector for a telescopic whip and a 50 ohm BNC for fixed antennas. A built-in antenna tuner works for both receiving and transmitting.
General characteristics
- HAM bands
- 160m 80m 60m 40m
- Frequency stability
- ?
- Tuning steps
- 1 kHz
- Memories
- None
Receiver
- RX-range
- 1.6-12 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- 2.4 kHz
- Receiver system
- superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 1.6-12 MHz
- Modulations
- AM CW SSB
- RF-output
- 3/15 W
Connections
- Antenna
- BNC + Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 24/12V DC, 110/220V AC, batteries
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 374 × 110 × 390 mm (14.72 × 4.33 × 15.35 in) incl. 110/220V power supply
- Weight
- 10.00 kg (22.1 lbs)
- Form factor
- Portable
- Manufactured
- Between 1975 and 1988 in East Germany
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5206
- MPN
- RFT-SEG-000015
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RFT SEG 15. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the RFT SEG 15 is around:
- EUR 17.00
These estimates are based on the following prices:
