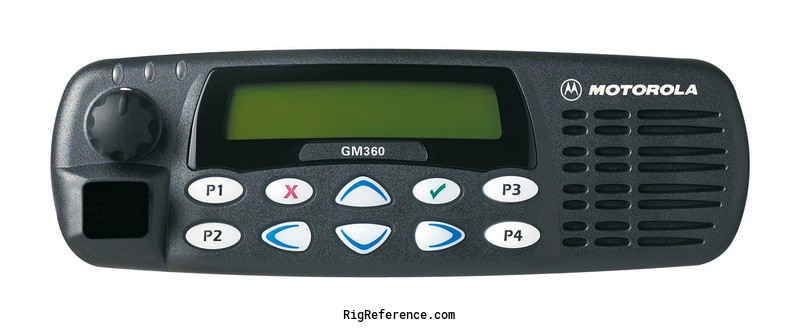

Motorola GM-360

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Motorola GM-360 rigs and spare parts on eBay Find the Motorola GM-360 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
29.7-36 MHz
36.42 MHz
42-50 MHz
136-174 MHz
403-470 MHz
TX-range
29.7-36 MHz
36.42 MHz
42-50 MHz
136-174 MHz
403-470 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
< 0.3 µV (12 dB SINAD)
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
70 dB
Audio output
?

Transmitter

Modulations
FM
RF-Output
40-60 W (VHF-low), 1-25 W (VHF-high / UHF)

Connections

Antenna
-
Impedance
50Ω

Electrical

Power requirements
10.8-15.6 VDC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
179 × 59 × 250 mm (7.05 × 2.32 × 9.84 in)
Weight
2.06 kg (4.5 lbs)
Form factor
Mobile
Manufactured
Between 199x and 20xx
MPN
MOTOROLA-GM-000360

Other features

Memories
?
Usage
Commercial / Land mobile communication
Features + options
CTCSS/PL and Select 5/5-tone selcall. VOX. DTMF. Voice encryption and trunking options.
Accessories
?
