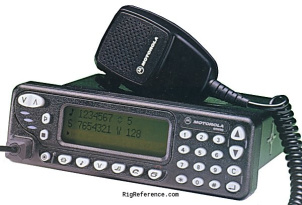

Motorola GM-950 N4

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Motorola GM-950 N4 rigs and spare parts on eBay Find the Motorola GM-950 N4 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
68-88 MHz
136-174 MHz
403-470 MHz
TX-range
68-88 MHz
136-174 MHz
403-470 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
< 0.35 µV (12 dB SINAD)
Selectivity
> 60 dB (12.5 kHz)
> 70 dB (20/25 kHz)
Receiver system
?
IF-frequencies
?
Image rejection
> 70 dB
Audio output
?

Transmitter

Modulations
FM
RF-Output
5/25 W

Connections

Antenna
-
Impedance
50Ω

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
168 × 44 × 160 mm (6.61 × 1.73 × 6.30 in)
Weight
1.05 kg (2.3 lbs)
Form factor
Mobile
Manufactured
Between 200x and 20xx
MPN
MOTOROLA-GM-000950-N4

Other features

Memories
128 channels in 1 bank(s)
Usage
Commercial / Land mobile communication
Features + options
Select 5/5-tone selcall. CTCSS/PL. Split mounting option.
Accessories
?
