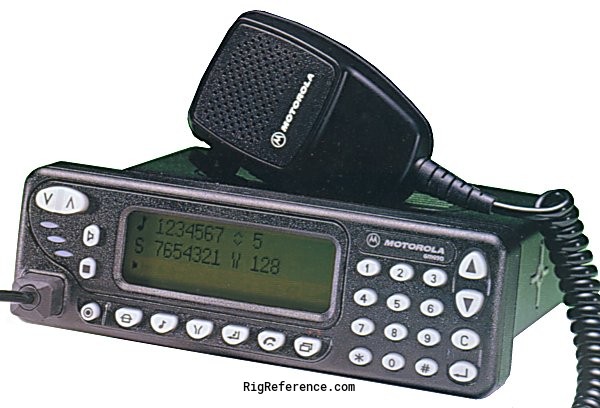

The Motorola GM-950 N4 is a Mobile VHF/UHF Transceiver. It covers 68-88 MHz, 136-174 MHz and 403-470 MHz for both receive and transmit. The radio has an image rejection of > 70 dB. RF output power is selectable between 5W and 25W. It features 1 memory bank with 128 channels, select 5/5-tone selcall, CTCSS/PL and split mounting option. The GM-950 N4 weighs 1.05 kg and has dimensions of 44 × 168 × 160 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 68-88 MHz
136-174 MHz
403-470 MHz - Modulations
- FM
- Sensitivity
- < 0.35 µV (12 dB SINAD)
- Selectivity
- > 60 dB (12.5 kHz)
> 70 dB (20/25 kHz) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- > 70 dB
- Audio output
- ?
Transmitter
- TX-range
- 68-88 MHz
136-174 MHz
403-470 MHz - Modulations
- FM
- RF-output
- 5/25 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 168 × 44 × 160 mm (6.61 × 1.73 × 6.30 in)
- Weight
- 1.05 kg (2.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 200x and 20xx
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- Select 5/5-tone selcall. CTCSS/PL. Split mounting option.
- Accessories
- -
- RigReference ID
- 5217
- MPN
- MOTOROLA-GM-000950-N4
Manuals, diagrams and brochures
- Motorola GM-950 UHF (403-470 MHz) Service Manual PDF - 2.35 MB, submitted by Kevin Robin Karlsson
