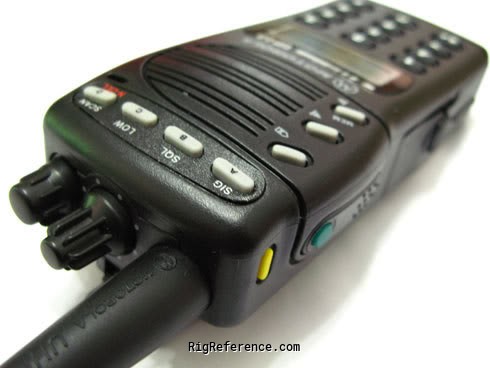

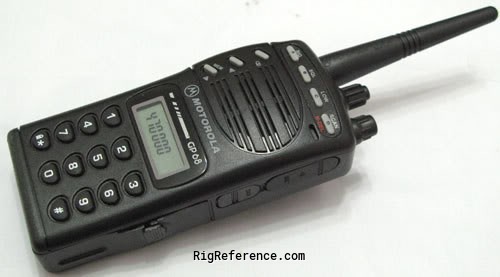

Motorola GP-68

Handheld VHF/UHF Transceiver

Specs Manuals (0) Reviews (1) Prices (0) Compare

Find Motorola GP-68 rigs and spare parts on eBay

Find the Motorola GP-68 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

There are versions with or without keyboard.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 5 / 10 / 12.5 / 20 / 25 kHz
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 136-174 MHz
430-470 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: > 70 dB
Audio output: ?

Transmitter

TX-range: 136-174 MHz
430-470 MHz
Modulations: FM
RF-output: 1/5 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 57 × 130 × 30 mm (2.24 × 5.12 × 1.18 in)
Weight: 404 gr (14.3 oz)
Form factor: Handheld
Manufactured: Between 19xx and 20xx

Other features

Usage: Commercial / Land mobile communication
Features + options: DTMF/CTCSS (PL)/DPL/CSQ
SmarTrunk II option
Accessories: -
RigReference ID: 5218
MPN: MOTOROLA-GP-000068
