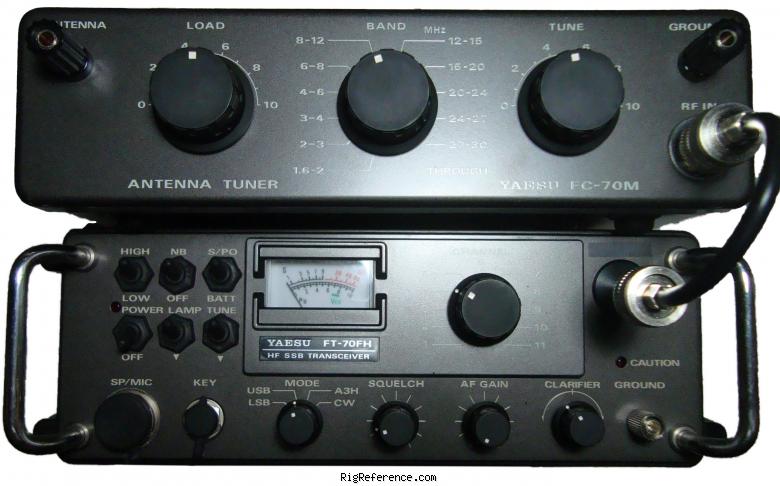

The Yaesu FT-70 is a manpack HF transceiver.

An FT-70F exists, this has 11 preset channels.

General characteristics

HAM bands
?
Frequency stability
within ± 150 Hz
Tuning steps
0.1 kHz
Memories
?

Receiver

RX-range
0.5-30 MHz
Modulations
AM   CW   USB   LSB
Sensitivity
0.5-2 MHz
SSB/CW: 4 µV
AM: 15 µV

2-30 MHz
SSB/CW: 0.4 µV
AM: 1.5 µV
Selectivity
2.4 kHz (-6 dB)
5.0 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 45.055 MHz
2nd: 10.7 MHz
Image rejection
?
Audio output
?

Transmitter

TX-range
2-30 MHz
Modulations
AM   CW   USB   LSB
RF-output
SSB/CW: 5/10 W, AM: 2/4 W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
0.5 A
TX
3.3 A max

Physical

Dimensions (w×h×d)
87 × 242 × 277 mm (3.43 × 9.53 × 10.91 in)
Weight
3.50 kg (7.7 lbs)
Form factor
Mobile
Manufactured
Between 198x and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5244
MPN
YAESU-FT-000070

Manuals, diagrams and brochures

Yaesu FT-70 Instruction Manual PDF - Unknown size, submitted by RigReference
