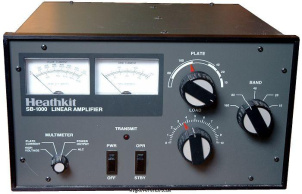

Heathkit SB-1000 Desktop Shortwave Linear Amplifier

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
-
TX-range
15-160m
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
-
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
All mode
RF-Output
SSB: 1 kW PEP, CW: 850 kW (drive power: 85-100 W)

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
7.5 A @ 240 V AC / 15 A @ 120 V AC

Physical

Dimensions (w×h×d)
361 × 178 × 406 mm (14.21 × 7.01 × 15.98 in)
Weight
17.00 kg (37.5 lbs)
Form factor
Base Station
Manufactured
Between 197x and 198x in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

Heathkit SB-1000 Assembly and User Manual submitted by RigReference
