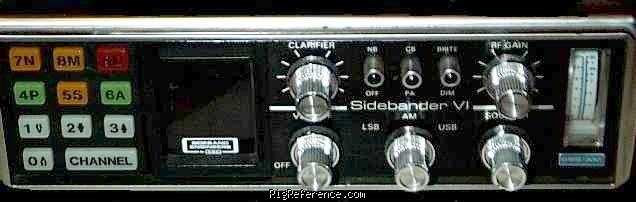

SBE Sidebander VI

Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The SBE Sidebander VI is a mobile transceiver. It covers 26.965-27.405 MHz for both receive and transmit. The RF output power is 4 W AM and 12 W SSB. Audio output is 2.5 W. It has 1 memory bank with 40 channels. Power requirements are 13.8V DC. Dimensions are 62 × 197 × 220 mm.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 40 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.405 MHz
Modulations: AM USB LSB DSB
Sensitivity: AM: 0.7 µV (10 dB S+S/N)
SSB: 0.25 µV (10 dB S+S/N
Selectivity: -65 dB @ 10 kHz
Filters: ?
Receiver system: ?
IF-frequencies: 7.8 MHz
Image rejection: ?
Audio output: 2.5 W

Transmitter

TX-range: 26.965-27.405 MHz
Modulations: AM USB LSB DSB
RF-output: AM: 4 W, SSB: 12 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 197 × 62 × 220 mm (7.76 × 2.44 × 8.66 in)
Weight: 1.80 kg (4.0 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Citizen Band (27Mc)
Features + options: -
Accessories: -
RigReference ID: 5266
MPN: SBE-SIDEBANDER-VI
