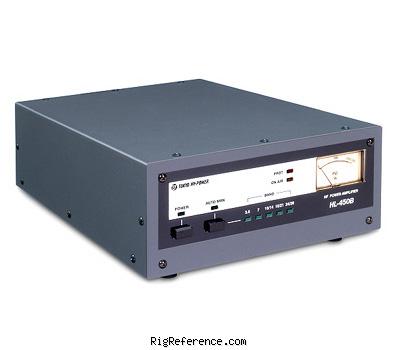

The Tokyo Hy-Power HL-450B is a desktop shortwave linear amplifier. It supports 80-10 meters with an RF output of 400 watts PEP. The amplifier requires 13.8V DC and draws a maximum current of 60A during transmit. It features a built-in SWR/power meter and has an input power limit of 50W. Dimensions are 90 × 220 × 330 mm and the unit weighs 5 kg.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 80-10 m
- Modulations
- All mode
- RF-output
- 400 PEP
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 60 A max
Physical
- Dimensions (w×h×d)
- 220 × 90 × 330 mm (8.66 × 3.54 × 12.99 in)
- Weight
- 5.00 kg (11.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Input power: 50 W max
Built-in SWR / Power meter - Accessories
- -
- RigReference ID
- 5290
- MPN
- TOKYO-HY-POWER-HL-000450B
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tokyo Hy-Power HL-450B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Linear Amplifier equipment, the estimated value of the Tokyo Hy-Power HL-450B is around:
- USD 496 ~ USD 920
This estimate is based on similar equipment and may not reflect the exact value of this model.
