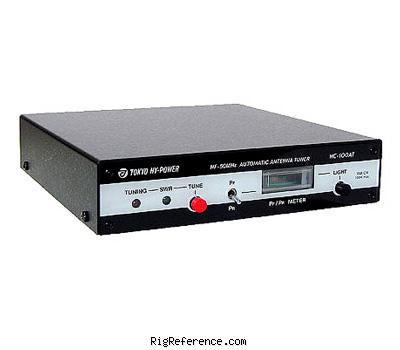

Tokyo Hy-Power HC-100AT Desktop HF/VHF Antenna tuner

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Microprocessor controlled automatic antenna tuner. Max RF power is 100 W (PEP/CW). Average tuning time is 1.2 seconds (4 seconds max).

Frequency range

RX-range
1.8-54 MHz
TX-range
1.8-54 MHz
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
-
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
All mode
RF-Output
-

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
12-14 V DC
Current drain RX
0.5 A
TX
0.5 A

Physical

Dimensions (w×h×d)
180 × 40 × 177 mm (7.09 × 1.57 × 6.97 in)
Weight
640 gr (1.4 lbs)
Form factor
Base Station
Manufactured
Between 20xx and 20xx
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.
