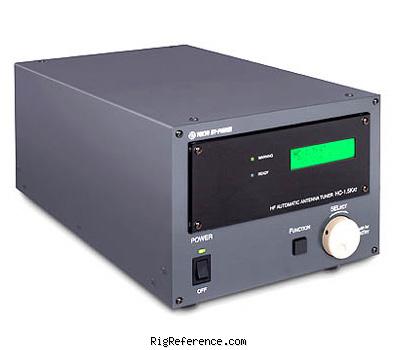

Tokyo Hy-Power HC-1.5KAT

Desktop Shortwave Antenna tuner

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Tokyo Hy-Power HC-1.5KAT rigs and spare parts on eBay Find the Tokyo Hy-Power HC-1.5KAT on Amazon
We receive a small fee when you buy through these links, thank you!

Microprocessor controlled automatic antenna tuner. Max RF power is 1500 W (PEP/CW). Average tuning time is 1 second (2.5 seconds max).

Frequency range

RX-range
1.8-29.7 MHz
TX-range
1.8-29.7 MHz
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
-
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
All mode
RF-Output
?

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
12-14 V DC
Current drain RX
1.5 A
TX
1.5 A

Physical

Dimensions (w×h×d)
200 × 140 × 300 mm (7.87 × 5.51 × 11.81 in)
Weight
5.00 kg (11.0 lbs)
Form factor
Base Station
Manufactured
Between 20xx and 20xx
MPN
TOKYO-HY-POWER-HC-000001.5KAT

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
LCD display
Accessories
?
