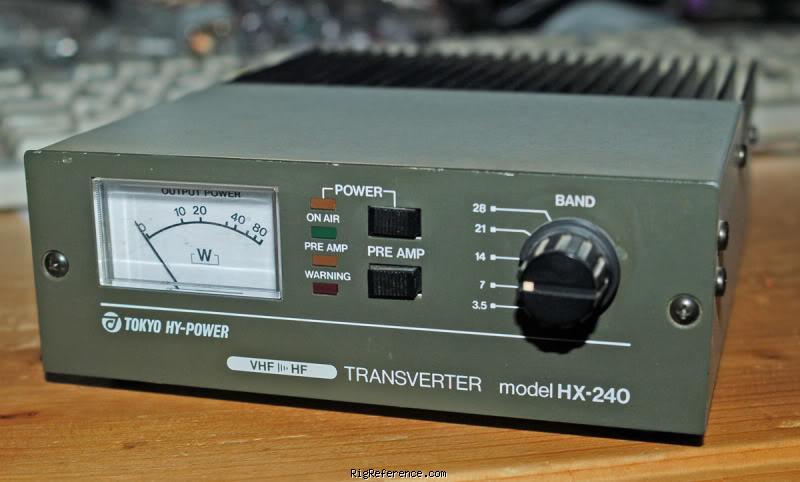

The Tokyo Hy-Power HX240 is a converter which allows a 2 meter transceiver to operate on the main HF bands. The HF output band is selected via a dial switch on the front. The HX-240 has a built-in power meter. Max RF input is 10 W.
General characteristics
- HAM bands
- 80m 40m 20m 15m 2m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144 to 3.5/7/14/21/28 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144 to 3.5/7/14/21/28 MHz
- Modulations
- FM CW SSB
- RF-output
- ?
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 7 A max
Physical
- Dimensions (w×h×d)
- 146 × 50 × 192 mm (5.75 × 1.97 × 7.56 in)
- Weight
- 1.30 kg (2.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Input power: 2.5W / 10W switchable
- Accessories
- -
- RigReference ID
- 5297
- MPN
- TOKYO-HY-POWER-HX-000240
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tokyo Hy-Power HX-240. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Tokyo Hy-Power HX-240 is around:
- USD 44.00
These estimates are based on the following prices:
