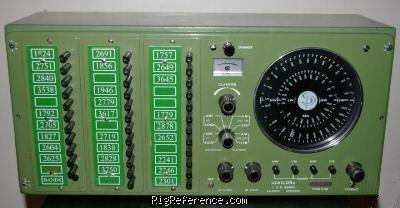

Maritime telephony and direction finding receiver, 150-350 / 300-535 / 700-1650 / 1600 - 4200 kHz and 35 crystal controlled channels including 2182 kHz emergency channel, AM, SSB, CW. Very similar to Sailor R104 but with three fixed frequency modules.

General characteristics

HAM bands
160m  80m
Frequency stability
?
Tuning steps
Continuous
Memories
36 channels in 3 bank(s)

Receiver

RX-range
150-4200 kHz in 4 bands
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Single conversion superheterodyne
IF-frequencies
600 kHz
Image rejection
?
Audio output
5 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
12/24 V DC, 110/220 V AC
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
492 × 232 × 220 mm (19.37 × 9.13 × 8.66 in)
Weight
15.00 kg (33.1 lbs)
Form factor
Base Station
Manufactured
Between 1972 and 197x in Denmark

Other features

Usage
Marine / Navy
Features + options
35 crystal controlled frequencies
Accessories
-
RigReference ID
5311
MPN
SAILOR-R000106

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sailor R106. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Sailor R106 is around:

  • EUR 1.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
1972 EUR 150.00 Used / Okay arjuna54
