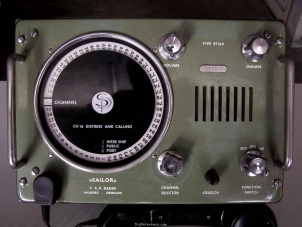

Marine telecommunication set comprising a transmitter and receiver for simplex and semi-duplex VHF-communication on the international maritime VHF-channels.

General characteristics

HAM bands
None
Frequency stability
± 10 p.p.m. (± 1.5 kHz)
Tuning steps
25 kHz

Receiver

RX-range
Simplex: 155-158.6 MHz
Semi-duplex: 159-6-163.2 MHz
Modulations
FM
Sensitivity
0.25 µV PD for 12 dB SINAD
Selectivity
?
Filters
?
Receiver system
Superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
2.5 W / 4 ohm @ 5% THD

Transmitter

TX-range
Simplex: 155-158.6 MHz
Semi-duplex: 159-6-163.2 MHz
Modulations
FM
RF-Output
1 / 25 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
12 or(!) 24 V DC
Current drain RX
500 mA
TX
5 A max

Physical

Manufactured
Between 1976 and 1989 in Denmark
Dimensions (w×h×d)
320 × 220 × 165 mm (12.60 × 8.66 × 6.50 in)
Weight
9.00 kg (19.9 lbs)
Form factor
Mobile

Other features

Memories
?
Usage
Marine / Navy
Features + options
Dual Watch (B and C-model)
Instant Channel 16 (C-model)
Accessories
?
MPN
SAILOR-RT000144

Manuals, diagrams and brochures

Sailor RT144 Instruction Book submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sailor RT144. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Sailor RT144 is around:

  • EUR 60.00

These estimates are based on the following prices: (see all 1 prices)

Year Historic price Condition Submitted by
2012 EUR 100.00 Used / Good Bart
