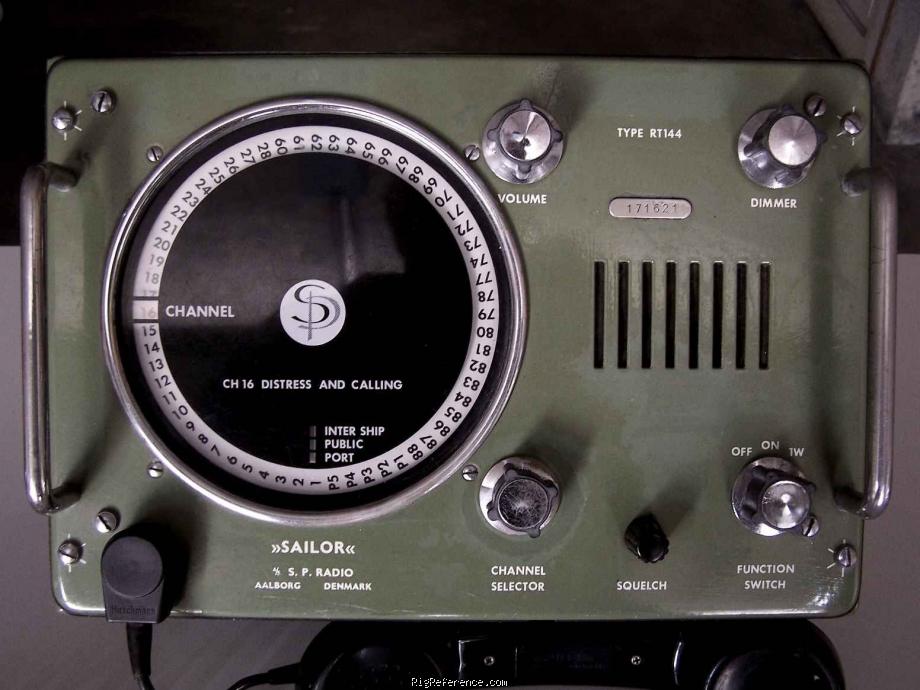

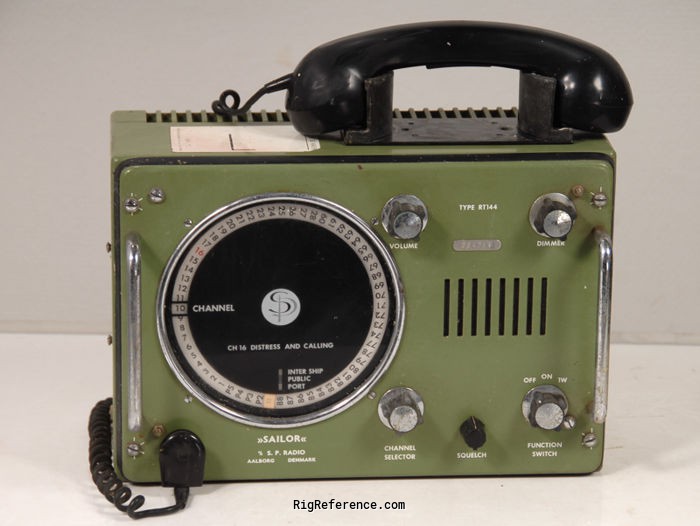

Marine telecommunication set comprising a transmitter and receiver for simplex and semi-duplex VHF-communication on the international maritime VHF-channels.

General characteristics

HAM bands
6m  None
Frequency stability
± 10 p.p.m. (± 1.5 kHz)
Tuning steps
25 kHz
Memories
?

Receiver

RX-range
Simplex: 155-158.6 MHz
Semi-duplex: 159-6-163.2 MHz
Modulations
FM
Sensitivity
0.25 µV PD for 12 dB SINAD
Selectivity
?
Filters
?
Receiver system
Superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
2.5 W / 4 ohm @ 5% THD

Transmitter

TX-range
Simplex: 155-158.6 MHz
Semi-duplex: 159-6-163.2 MHz
Modulations
FM
RF-output
1 / 25 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
12 or(!) 24 V DC
Current drain RX
500 mA
TX
5 A max

Physical

Dimensions (w×h×d)
320 × 220 × 165 mm (12.60 × 8.66 × 6.50 in)
Weight
9.00 kg (19.9 lbs)
Form factor
Mobile
Manufactured
Between 1976 and 1989 in Denmark

Other features

Usage
Marine / Navy
Features + options
Dual Watch (B and C-model)
Instant Channel 16 (C-model)
Accessories
-
RigReference ID
5324
MPN
SAILOR-RT000144

Manuals, diagrams and brochures

Sailor RT144 Instruction Book PDF - 10.53 MB, submitted by RigReference

Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sailor RT144. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Sailor RT144 in Good condition is around:

  • EUR 100

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2012 EUR 100.00 Used / Good Bart
