Motorola LST-5B

Handheld VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Motorola LST-5B rigs and spare parts on eBay

Find the Motorola LST-5B on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

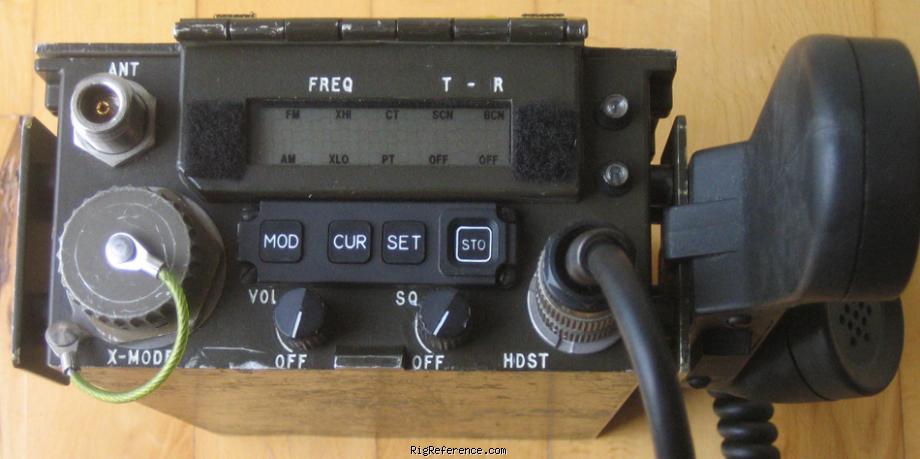

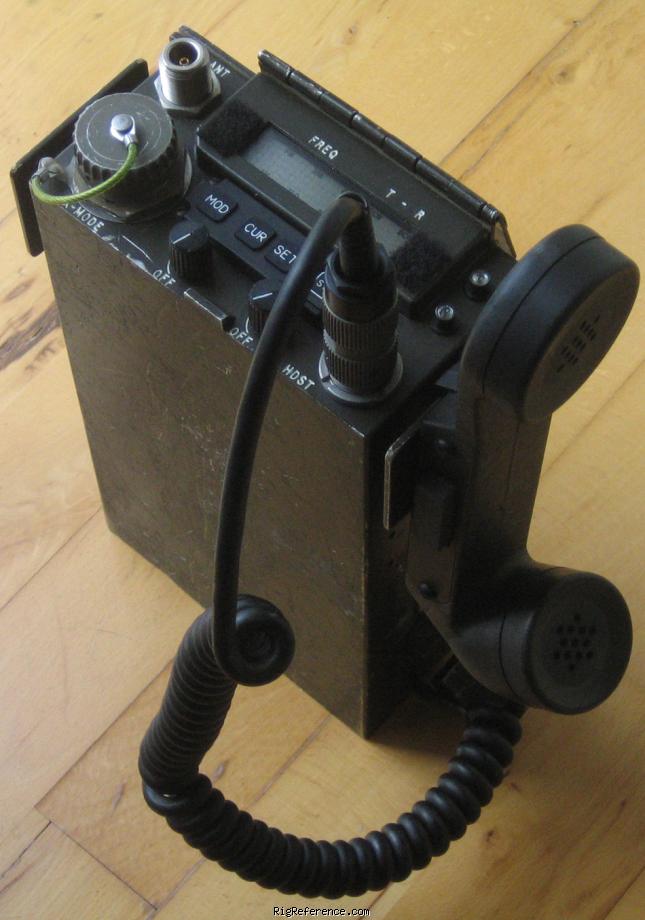

The Motorola LST-5B is a handheld SatCom terminal. RF power can be selected from 4 to 20 W in 2 watt steps in FM. In AM there is a high and low setting, yielding 2 and 5 W.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 5 kHz
Memories: ?

Receiver

RX-range: 225 - 399.995 MHz
Modulations: AM FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 225 - 399.995 MHz
Modulations: AM FM
RF-output: FM: 4-20 W, AM: 2-5 W

Connections

Antenna: N-type + Proprietary (military)
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Handheld
Manufactured: Between 19xx and 19xx

Other features

Usage: Military communication
Features + options: -
Accessories: -
RigReference ID: 5342
MPN: MOTOROLA-LST-000005B
