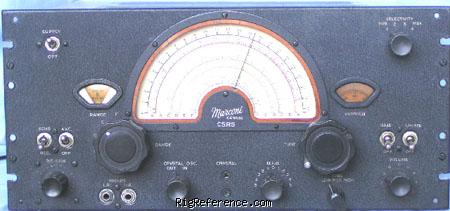

The Marconi CSR-5 receiver is a high grade instrument especially designed to provide the maximum reliability for fixed and mobile station operation. It was designed to provide maximum sensitivity and stability under the most severe conditions of operation, such as vibration and high humidity.
The frequency ranges covered are in 2 groups - 79 to 518 kHz and 1.5 - 30 MHz.
The ranges are covered in 6 colour coded bands, the dial assembly being reminiscent of the Marconi R1155 aircraft receiver.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m 2000m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 80 kHz - 30 MHz
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion
- IF-frequencies
- 575 kHz
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50/500Ω
- Other
- -
Electrical
- Power requirements
- Mains or 12 V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Military communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5401
- MPN
- MARCONI-CSR-000005
