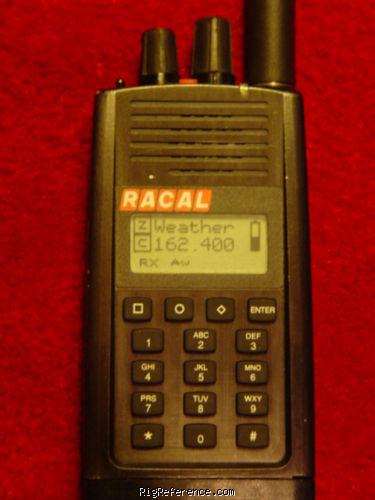

The Thales Racal 25 is the most rugged Project 25-compliant portable digital radio available for law enforcement agents, wildland firefighters, and first responders. Supports DES encryption (Analog and digital). The 25 can be programmed both from a PC or via the keypad. The Mil Spec housing is machined from a solid block of aircraft grade aluminum and is submersible in water up to 2 meters.
This unit is also known as the PRC-6894.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 12.5 / 25 kHz
- Memories
- 304 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz
- Modulations
- FM P25
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174 MHz
- Modulations
- FM P25
- RF-output
- 0.1-5 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Li-Ion battery (11+ hours)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 475 gr (1.0 lbs)
- Form factor
- Handheld
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- CTCSS, DCS, DTMF
- Accessories
- -
- RigReference ID
- 5408
- MPN
- RACAL-000025
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Racal 25. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Racal 25 in Good condition is around:
- USD 325 ~ USD 397
These estimates are based on the following prices:
