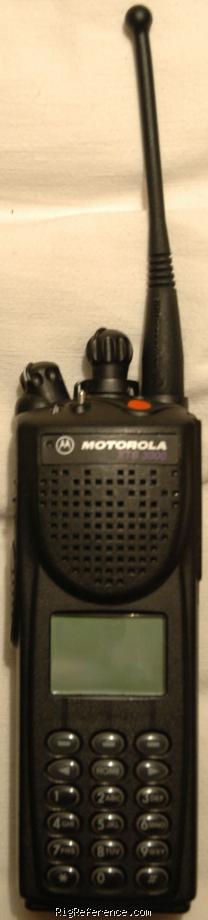

The Motorola XTS-3000 supports P25 and MDC1200 signalling protocols and is part of Motorola's ASTRO range.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
?

Receiver

RX-range
138–174 / 403–470 / 450–520 / 806–870MHz depending on version
Modulations
FM   P25
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
138–174 / 403–470 / 450–520 / 806–870MHz depending on version
Modulations
FM   P25
RF-output
VHF/UHF: 5W, 800MHz: 3W

Connections

Antenna
NMO
Impedance
50Ω
Other
-

Electrical

Power requirements
?
Current drain RX
?
TX
?

Physical

Manufactured
Between 20xx and 20xx
Dimensions (w×h×d)
62 × 167 × 42 mm (2.44 × 6.57 × 1.65 in) without battery
Weight
390 gr (13.8 oz) without battery
Form factor
Handheld

Other features

Memories
255 channels in 1 bank(s)
Usage
Commercial / Land mobile communication
Features + options
UCM for Encryption optional
Accessories
?
MPN
MOTOROLA-XTS-003000
