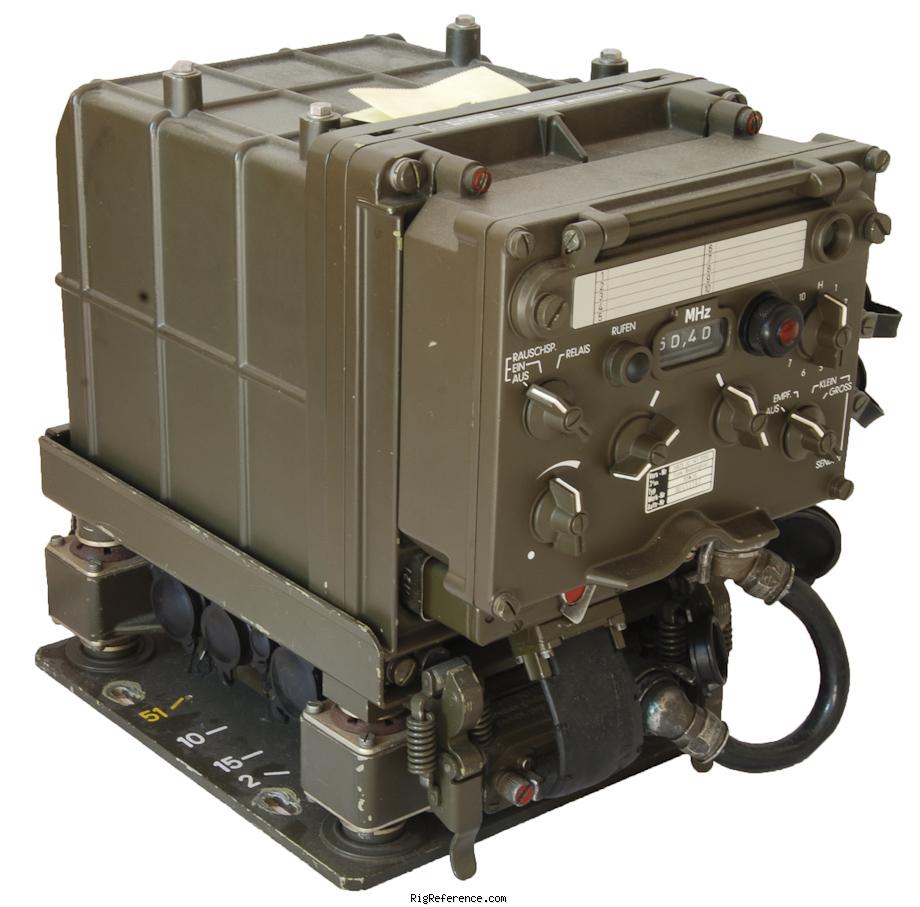

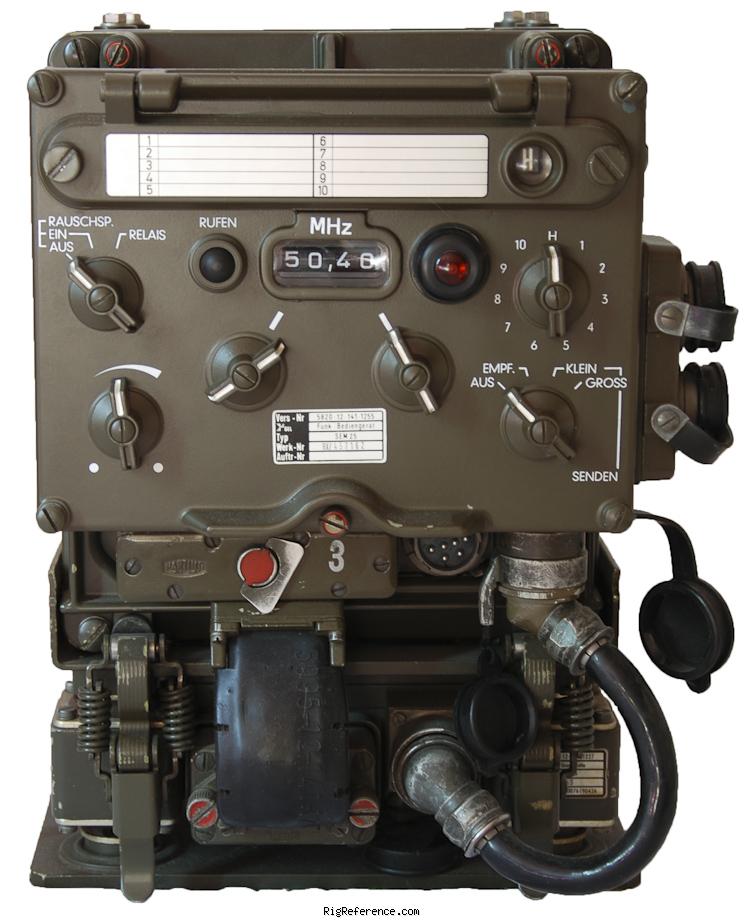

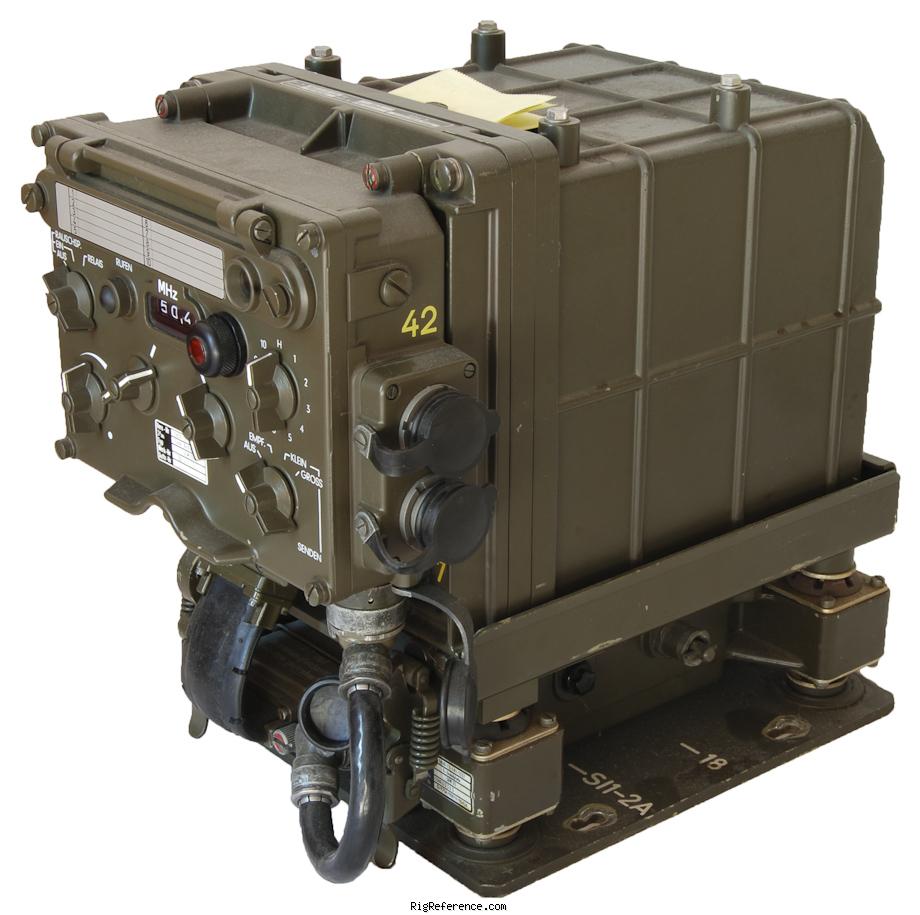

The EM-25 is a short-range VHF FM receiver. It was introduced in the 1960's and used well into the 1980's. The EM-25 uses all solid state technology. A transceiver configuration also exists under the name Military SEM-25
General characteristics
- HAM bands
- 11m (CB) 6m 10m
- Frequency stability
- ±3.5 kHz from -40 to +60°C
- Tuning steps
- 50 kHz
- Memories
- 880 channels in 1 bank(s)
Receiver
- RX-range
- 26.000-69.950 MHz
- Modulations
- FM
- Sensitivity
- 0.5 µV (20 dB S/N)
- Selectivity
- ± 50 kHz @ 80 dB
- Filters
- > 30 kHz (-6 dB)
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 50 mW into 600 ohm
Connections
- Antenna
- BNC + Proprietary (military)
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 24V DC (21-29V DC, 32V max)
- Current drain RX
- 60 mA (24V)
- TX
- -
Physical
- Dimensions (w×h×d)
- 222 × 268 × 330 mm (8.74 × 10.55 × 12.99 in)
- Weight
- 17.00 kg (37.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 196x and 198x in Germany
Other features
- Usage
- Military communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5418
- MPN
- MILITARY-EM-000025
