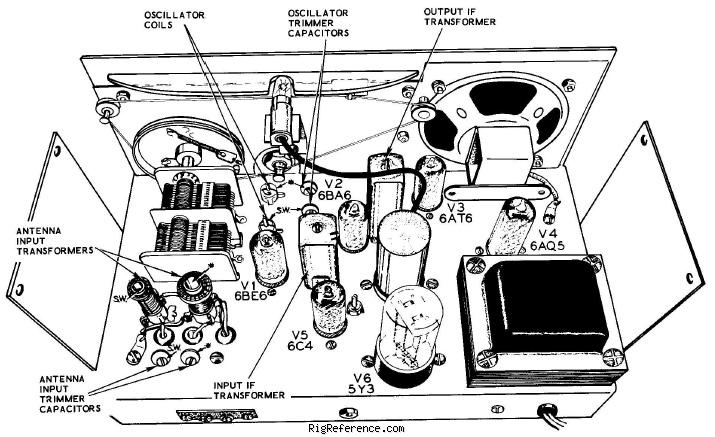

The Heathkit EK-2B is an educational kit radio from the early 1960's. It was preceded by the EK-2A and EK-1.

Frequency range

RX-range
540-1600 kHz / 3-10 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM
Sensitivity
20 mV (10 dB S/N)
Selectivity
8 kHz (-6 dB)
Receiver system
Single conversion
IF-frequencies
455 kHz
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
Clamps / screws
Impedance
50 Ω

Electrical

Power requirements
Mains (105-125 V AC)
Current drain RX
40 W
TX
-

Physical

Dimensions (w×h×d)
292 × 165 × 190 mm (11.50 × 6.50 × 7.48 in)
Weight
1.80 kg (4.0 lbs)
Form factor
Base Station
Manufactured
Between 1961 and 196x in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.
