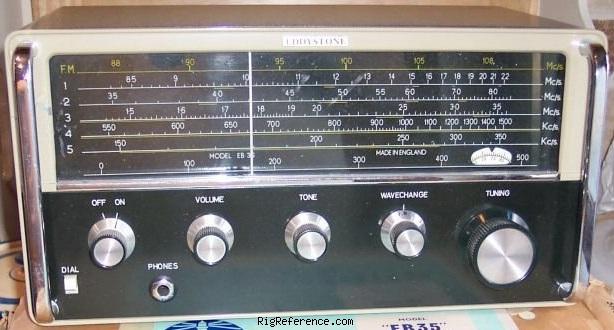

The Eddystone EB-35 Mk III (Statesman) marine communications receiver covers 150-350 / 550-1500 kHz / 1.5-3.5 / 3.5-8.5 / 8.5-22 MHz in AM and 88-108 MHz in FM. Specifications are the same as the Eddystone EB-35 Mk II but with improved semi-conductor circuitry. An optional AC power supply was available (924A) as was a 12/24 V DC supply (945A). Power supply has negative earth!
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 150-350 / 550-1500 kHz / 1.5-22 / 88-108 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion
- IF-frequencies
- 465 kHz
- Image rejection
- ?
- Audio output
- 0.75 W
Connections
- Antenna
- SO-239
- Impedance
- 75/400Ω
- Other
- -
Electrical
- Power requirements
- 6×U2 (1.5V) battery cells
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 317 × 162 × 203 mm (12.48 × 6.38 × 7.99 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 196x and 197x in Great Britain (Birmingham)
Other features
- Usage
- Marine / Navy
- Features + options
- AFC
- Accessories
- -
- RigReference ID
- 5441
- MPN
- EDDYSTONE-EB-000035-MK-III-(STATESMAN)
Manuals, diagrams and brochures
- Eddystone EB35 MkIII Instruction Manual PDF - 6.47 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Eddystone EB-35 Mk III (Statesman). Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the Eddystone EB-35 Mk III (Statesman) is around:
- USD 140 ~ USD 260
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
