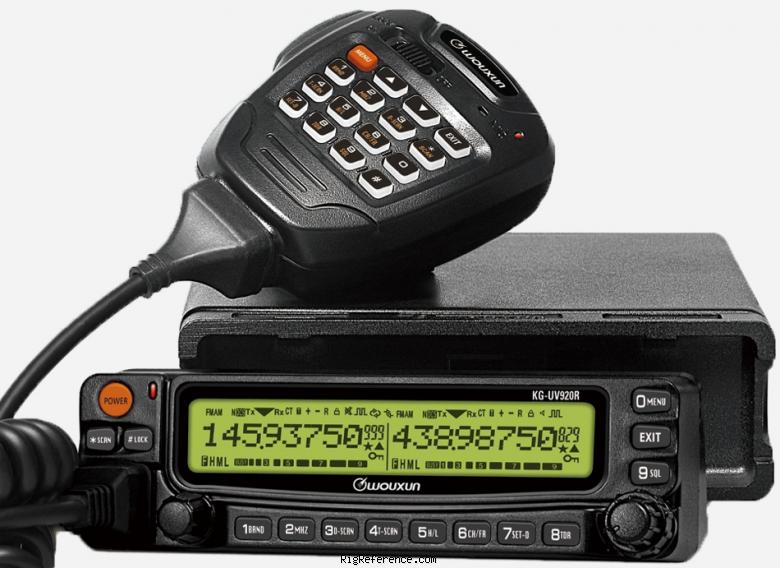

The KG-UV920R is Wouxon's first dual band rig, operating both 2 meters and 70 cm (440 MHz). Power output is selectable in 3 steps (2m: 5/25/50W, 70cm: 5/20/40W) and modulation can be switched between narrow-FM and regular-FM. The receiver covers the entire HF band, 65-220 MHz and 400-520 MHz and supports AM. A detachable front panel and DTMF-mic come standard.
Also sold as the Luthor TLM-007.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz
- Memories
- 999 channels in 1 bank(s)
Receiver
- RX-range
- FM: 88-108 / 134-174 / 200-260 / 350-520 MHz
AM: 118-134 MHz - Modulations
- AM FM N-FM
- Sensitivity
- < 0.2µV (12dB SINAD)
- Selectivity
- 12.5 kHz < -60 dB
25 kHz < -70 dB - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 2 m / 70 cm
- Modulations
- FM N-FM
- RF-output
- 5-50 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- 500 mA
- TX
- 9 A max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 2010 and 201x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DTMF-mic
Detachable front panel
Called ID
Twin RX
Cross-band repeater - Accessories
- -
- RigReference ID
- 5445
- MPN
- WOUXUN-KG-UV000920R
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Wouxun KG-UV920R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Wouxun KG-UV920R in Good condition is around:
- AUD 300
These estimates are based on the following prices:
