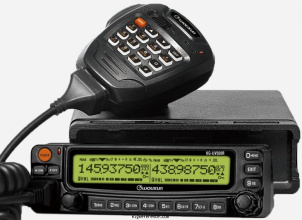

The KG-UV920R is Wouxon's first dual band rig, operating both 2 meters and 70 cm (440 MHz). Power output is selectable in 3 steps (2m: 5/25/50W, 70cm: 5/20/40W) and modulation can be switched between narrow-FM and regular-FM. The receiver covers the entire HF band, 65-220 MHz and 400-520 MHz and supports AM. A detachable front panel and DTMF-mic come standard.

Also sold as the Luthor TLM-007.

General characteristics

HAM bands
2m  70cm
Frequency stability
± 2.5 p.p.m.
Tuning steps
5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz
Memories
999 channels in 1 bank(s)

Receiver

RX-range
FM: 88-108 / 134-174 / 200-260 / 350-520 MHz
AM: 118-134 MHz
Modulations
AM   FM   N-FM
Sensitivity
< 0.2µV (12dB SINAD)
Selectivity
12.5 kHz < -60 dB
25 kHz < -70 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
2 m / 70 cm
Modulations
FM   N-FM
RF-output
5-50 W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC ±15%
Current drain RX
500 mA
TX
9 A max

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 2010 and 201x in China

Other features

Usage
Amateur / Ham radio operators
Features + options
DTMF-mic
Detachable front panel
Called ID
Twin RX
Cross-band repeater
Accessories
-
RigReference ID
5445
MPN
WOUXUN-KG-UV000920R

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Good rig for the price 11 years ago by swld

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Wouxun KG-UV920R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Wouxun KG-UV920R is around:

  • AUD 100.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2012 AUD 399.00 New / Mint swld
