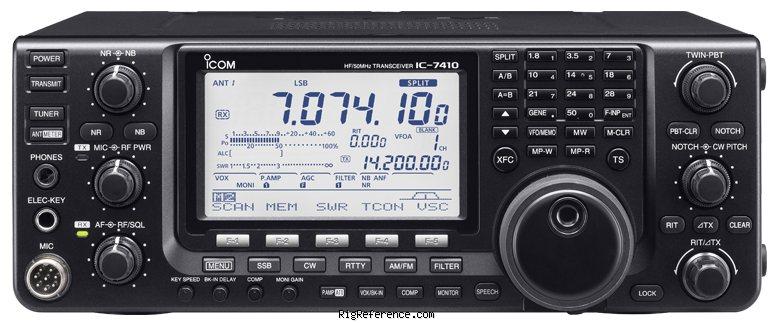

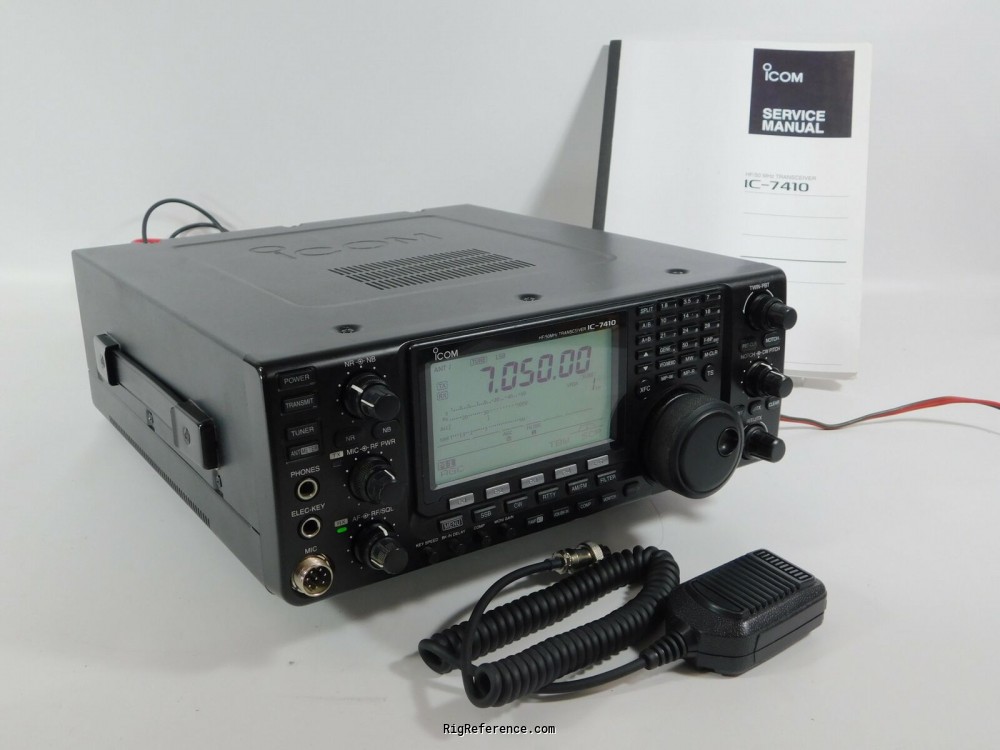

The Icom IC-7410 is the successor to the ICOM IC-7400 and ICOM IC-746 Pro providing professional performance in the 160 to 6 meter amateur bands. This HF rig employs the same high grade DSP unit and double conversion super-heterodyne system developed from the latest technology used in the IC-7600, IC-7700 and IC-7800 series. It features a 15kHz roofing filter. In addition, when used with the optional FL-430 and FL-431 filters, narrow mode signals are protected from adjacent inband signals. The 3kHz first IF filter is especially effective in the CW and SSB modes. It utilizes Icom's proven IF-DSP technology. Like the IC-746Pro, it features a sharp black and white LCD. In fact, the IC-7410 display is actually 10mm wider than the ICOM IC-746 Pro display. It features a superior general coverage receiver covering 30 kHz to 60 MHz with +30dbm 3rd order intercept point receive performance and ±0.5 p.p.m. stability. There is a built-in bandscope function, and Baudot RTTY capability. Other refinements include: ±9.999 kHz RIT, BPF, quick split function, band edge beep and CW keyer (6-48 WPM). A large chassis heatsink is employed. There is a built-in tuner. Power is 100 watts. There are both CI-V and USB ports on the rear panel. Original price in 2010: USD 1995.00.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
± 0.5 p.p.m.
Tuning steps
?
Memories
101 channels in 1 bank(s)

Receiver

RX-range
30 kHz - 60 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY
Sensitivity
SSB/CW (10 dB S/N)
1.8-29.999 MHz : -16dBμ (0.16 μV) (1 preamplifier ON)
50 MHz band :-18dBμ (0.13 μV) (2 preamp ON)
AM (10dB S/N)
0.5-1.8 MHz : +22 dBμ (12.6 μV) (1 preamplifier ON)
1.8-29.999 MHz : +6 dBμ (2.0 μV) (1 preamplifier ON)
50 MHz band : +4 dBμ (1.6 μV) (2 preamp ON)
FM (12dB SINAD)
28.0-29.7 MHz :-6 dBμ (0.50 μV) (1 preamplifier ON)
50 MHz band :-10 dBμ (0.32 μV)
Selectivity
SSB (BW = 2.4kHz)
Above 2.4kHz /-6dB
Below 3.4kHz /-40dB
CW (BW = 500Hz)
Above 500Hz /-6dB
Below 700Hz /-40dB
RTTY (BW = 350Hz)
Above 500Hz /-6dB
Below 800Hz /-40dB
AM (BW = 6kHz)
Above 6.0kHz /-6dB
Below 10kHz /-40dB
FM (BW = 15kHz)
12.0kHz or higher /-6dB
Below 22kHz /-40dB
Filters
15 kHz (standard) 6 / 3 kHz (optional) (max. three filters total)
Receiver system
Double conversion + DSP
IF-frequencies
1st: 64.455 MHz
2nd: 36 kHz
Image rejection
> 70 dB
Audio output
2.0W (8Ω, 10% distortion)

Transmitter

TX-range
160-10 m + WARC / 6 m
Modulations
AM   FM   CW   USB   LSB   RTTY
RF-output
100 W (50 W for Japanese version)

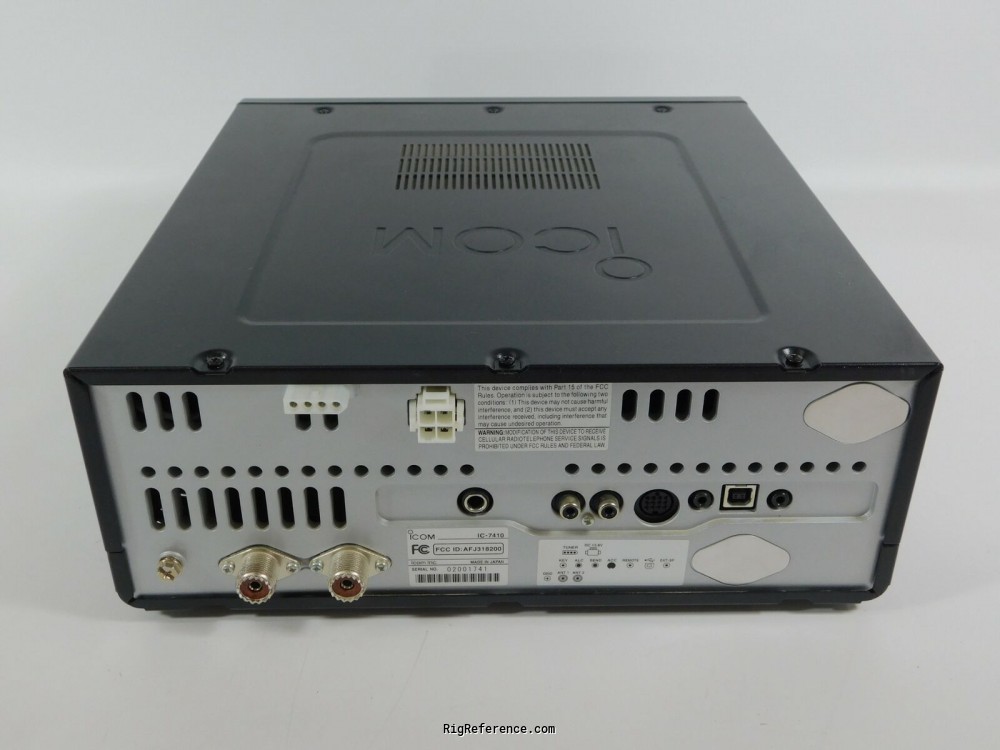

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
3 A
TX
23 A max.

Physical

Dimensions (w×h×d)
315 × 116 × 343 mm (12.40 × 4.57 × 13.50 in) excluding protrusions
Weight
10.20 kg (22.5 lbs) excluding optional modules
Form factor
Base Station
Manufactured
Between 2011 and 201x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
36 kHz 32-bit IF DSP (the same class as used in the IC-7600)
Built-in Auto-AT
Built-in RTTY demodulator
Integrated speech synthesizer
+30 dBm IP3 on HF
USB interface for PC control and voice output
“Band edge beep alarm” helps users avoid off-band operation
Large B/W LCD screen, ergonomically designed controls
Accessories
-
RigReference ID
5470
MPN
ICOM-IC-007410

Manuals, diagrams and brochures

ICOM IC-7410 High resolution image (4410 x 1824 pixels, 3.9MB) JPG - Unknown size, submitted by RigReference
FCC test report (ICOM IC-7410) PDF - Unknown size, submitted by RigReference

Upload relevant documents

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-7410. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-7410 is around:

  • EUR 1264.00 ~ EUR 1346.00
  • USD 893.00 ~ USD 1222.00
  • CAD 1437.00
  • GBP 599.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 GBP 600.00 Used / Good John G8CCD
2014 EUR 1640.00 New / Mint dg1un
2013 USD 1700.00 New / Mint universal-radio
2013 EUR 1759.00 New / Mint thiecom.de
2013 CAD 2000.00 New / Mint brent redenbach
