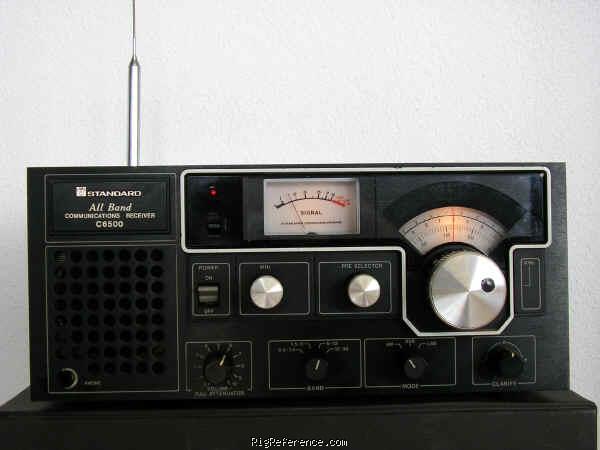

The Standard C-650 is a Wadley Loop principle HF-receiver. It's design (inside and out) are very similar to the Century-21 and Drake SSR-1.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
1.5-30 MHz
Modulations
AM   USB   LSB
Sensitivity
AM
< 1,5 MHz: 5 µV
1,5 - 30 MHz: < 1 µV
SSB
< 1,5 MHz: 1 µV
1,5 - 30 MHz: < 0,5 µV
Selectivity
AM: 7 / 13 kHz (-6 / -30 dB)
SSB 4 / 8 kHz (-6 / -30 dB)
Filters
?
Receiver system
Wadley Loop
IF-frequencies
1st: 2.5 MHz
2nd: 455 kHz
Image rejection
?
Audio output
?

Connections

Antenna
SO-239 + Built-in telescopic
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains / 12 V DC / 8 × UM-1 cells
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
340 × 156 × 290 mm (13.39 × 6.14 × 11.42 in)
Weight
6.40 kg (14.1 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Clarify control
Accessories
-
RigReference ID
5474
MPN
STANDARD-C-006500

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Standard C-6500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Standard C-6500 is around:

  • USD 127.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 128.50 Used / Good eBay
