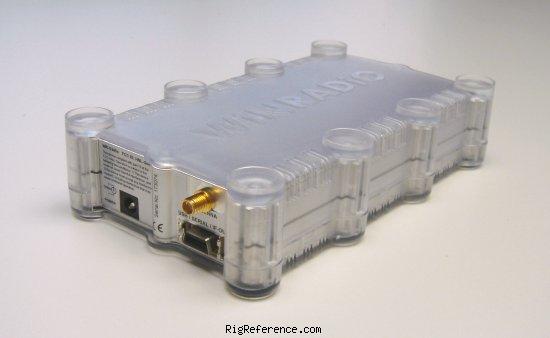

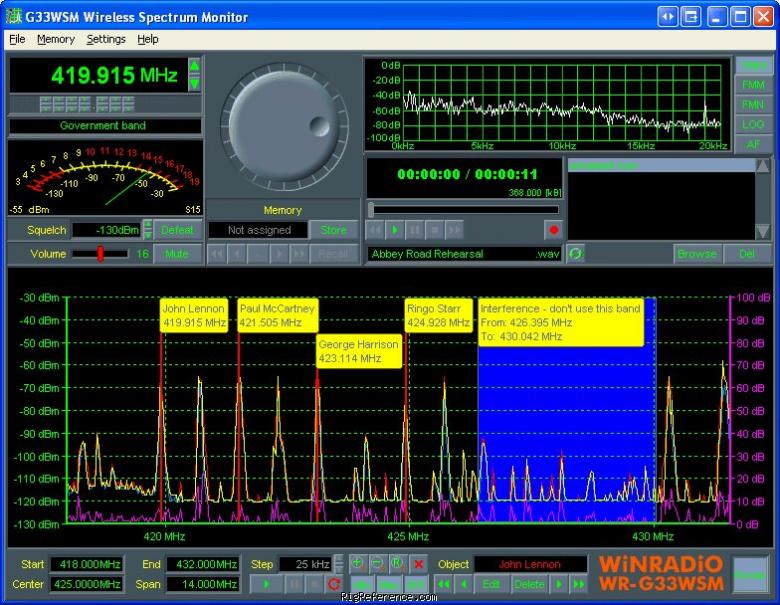

The WR-G33WSM is the first Software Defined Radio specifically designed for telemetry, audio engineering and stage production applications. The G33WSM receiver offers a the real-time spectrum analyzer with both linear and logarithmic scale, variable IF (intermediate frequency) filter and audio recording.
General characteristics
- HAM bands
- 6m 2m 1.25m 70cm 33cm 4m
- Frequency stability
- 10 p.p.m. (0 to 60° C)
- Tuning steps
- 1 Hz kHz
- Memories
- ?
Receiver
- RX-range
- 30 - 1000 MHz
- Modulations
- FM N-FM W-FM
- Sensitivity
- FM, N-FM: 0.7 µV (30-500 MHz), 0.8 µV (500-1000 MHz)
W-FM: 2.0 µV (30-500 MHz), 2.5 µV (500-1000 MHz) - Selectivity
- FM-N: 12 kHz (continuously variable)
FM-M: 30 kHz (continuously variable)
FM-W: 230 kHz - Filters
- ?
- Receiver system
- DDS-based dual-conversion superheterodyne with software-defined last IF stage and demodulator
- IF-frequencies
- 1st: 109.65 MHz
2nd: 12 kHz - Image rejection
- 60 dB
- Audio output
- ?
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12V DC
- Current drain RX
- 500mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 164 × 96 × 41 mm (6.46 × 3.78 × 1.61 in)
- Weight
- 470 gr (1.0 lbs)
- Form factor
- Headless
- Manufactured
- Between 200x and 200x
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- USB (1.0 / 2.0) compatible computer connection.
- Accessories
- -
- RigReference ID
- 5494
- MPN
- WINRADIO-WR-G000033WSM
