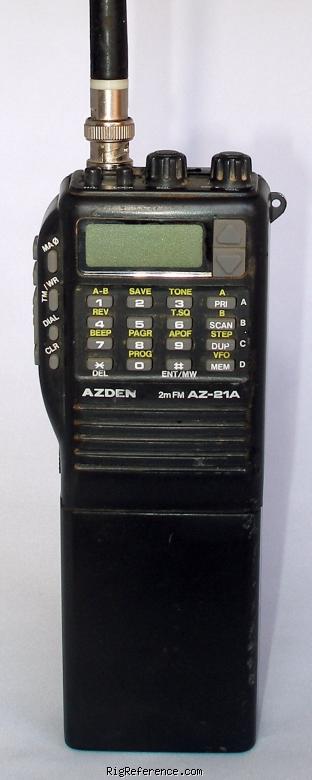

The Azden AZ-21 is a handheld VHF transceiver. It covers the 2m band for both receive and transmit. The RF output is selectable between High: 5 W and Low: 0.5 W. Image rejection is 60 dB. The radio requires 6.3-16V DC power and weighs 550 gr. Dimensions are 174 × 60 × 33 mm.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
2m
Modulations
FM
Sensitivity
0.16 µV (12 dB SINAD)
Selectivity
12 kHz (-6 dB), 30 kHz (-60 dB)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
60 dB
Audio output
?

Transmitter

TX-range
2m
Modulations
FM
RF-output
High: 5 W, Low: 0.5 W

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
6.3-16V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
60 × 174 × 33 mm (2.36 × 6.85 × 1.30 in)
Weight
550 gr (1.2 lbs)
Form factor
Handheld
Manufactured
Between 200x and 200x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5499
MPN
AZDEN-AZ-000021

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Azden AZ-21. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Azden AZ-21 is around:

  • USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.
