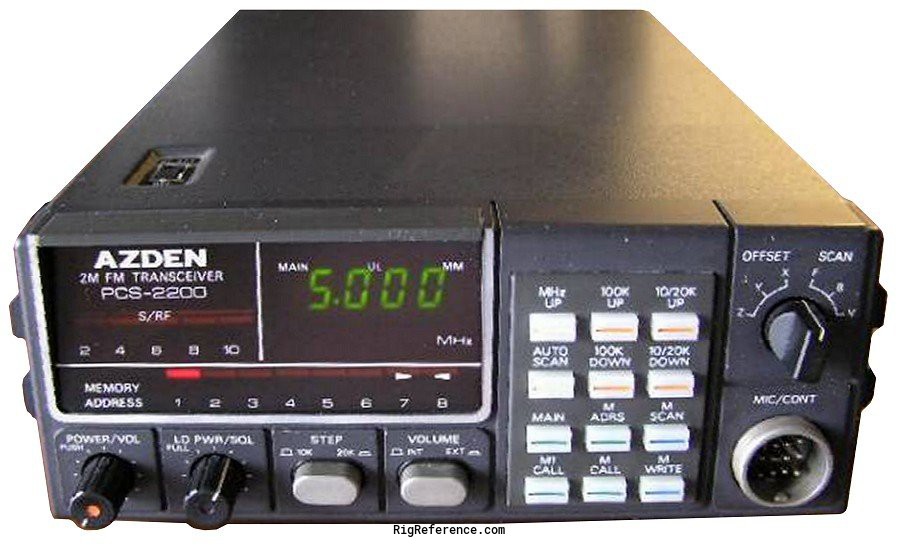

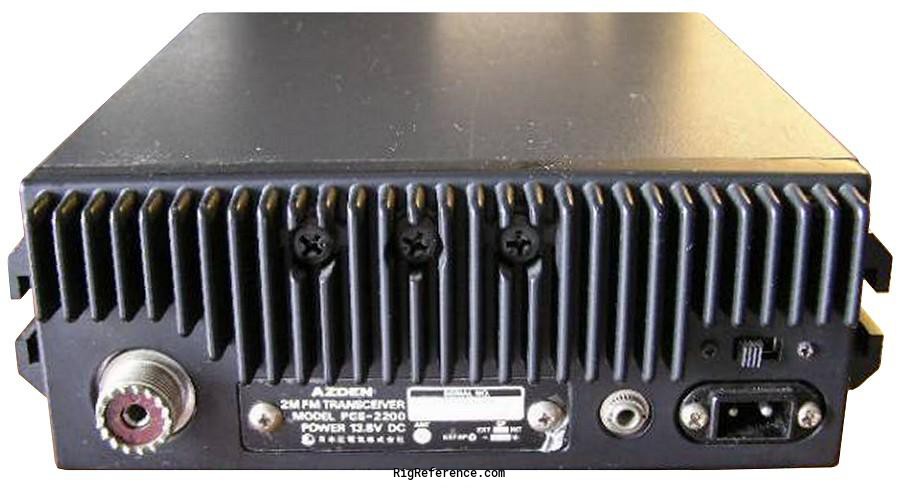

The Azden PCS-2200 is a mobile VHF transceiver. It covers 144-147.995 MHz (US version) or 144-145.995 MHz (EU version). The receiver system is double conversion superheterodyne with IF frequencies of 16.90 MHz and 455 kHz. RF output is selectable at 5 / 25 W. Audio output is 2 W at 10% distortion into 8 ohms. Power requirements are 13.8 V DC ±15%. Dimensions are 62 × 158 × 246 mm. Current drain is 0.7 A in receive and 5.0 A max in transmit.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-147.995 MHz (US version)
144-145.995 MHz (EU version) - Modulations
- FM
- Sensitivity
- 0.28 µV
- Selectivity
- 6 kHz @ -6 dB / 15 kHz @ -60 dB
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 16.90 MHz
455 kHz - Image rejection
- ?
- Audio output
- 2 W at 10% distortion into 8 ohms
Transmitter
- TX-range
- 144-147.995 MHz (US version)
144-145.995 MHz (EU version) - Modulations
- FM
- RF-output
- 5 / 25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- 0.7 A
- TX
- 5.0 A max
Physical
- Dimensions (w×h×d)
- 158 × 62 × 246 mm (6.22 × 2.44 × 9.69 in)
- Weight
- 2.50 kg (5.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5500
- MPN
- AZDEN-PCS-002200
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Azden PCS-2200. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Azden PCS-2200 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
