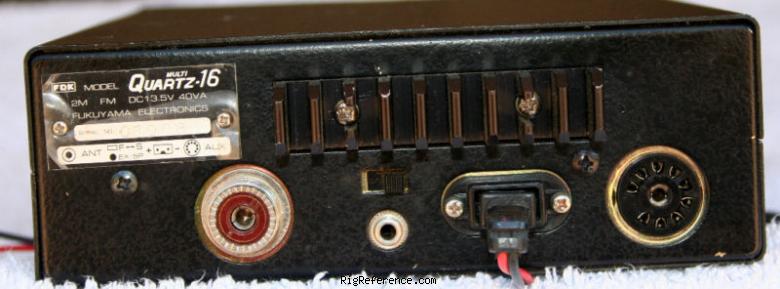

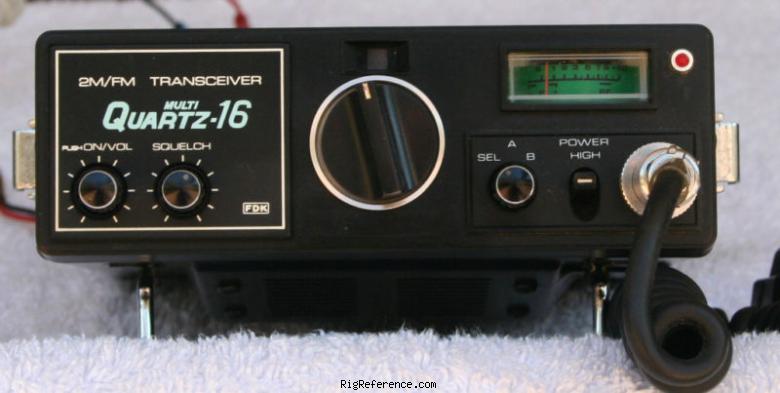

FDK Multi Quartz-16

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

?

Memories

23 channels in 1 bank(s)

Receiver

RX-range

144-146 MHz

Modulations

FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

XTAL

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-146 MHz

Modulations

FM

RF-output

1 / 10 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

160 × 65 × 215 mm (6.30 × 2.56 × 8.46 in)

Weight

?

Form factor

Mobile

Manufactured

Between 197x and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5513

MPN

FDK-MULTI-QUARTZ-000016

Manuals, diagrams and brochures

FDK MULTI Quartz-16 Manual & Schematic PDF - 2.58 MB, submitted by Juan carlos



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FDK Multi Quartz-16. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the FDK Multi Quartz-16 is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.
