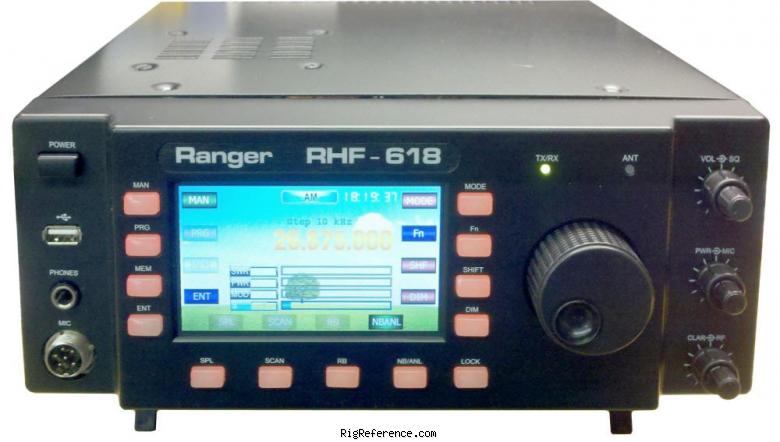

Ranger RHF-618

Mobile HF/VHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Ranger RHF-618 rigs and spare parts on eBay Find the Ranger RHF-618 on Amazon
We receive a small fee when you buy through these links, thank you!

Price when new in 2011: around 330 EUR.

Frequency range

RX-range
24-32 MHz
TX-range
24-32 MHz
10 / 12 m
HAM bands
?
Stability
0.001%
Tuning steps
100 Hz / 1 / 10 / 100 / 1000 kHz
Filters
?

Receiver

Modulations
AM   FM   CW   USB   LSB
Sensitivity
AM / CW: 0.5 µV for 10 dB SINAD
FM: 0.25 µV for 12 dB SINAD
SSB: 0.15 µV for 10 dB SINAD
Selectivity
?
Receiver system
Microprocessor / Phase-Locked-Loop Synthesizer
IF-frequencies
?
Image rejection
65 dB
Audio output
2.5 Watts @ 10% THD into 8 W

Transmitter

Modulations
AM   FM   CW   USB   LSB
RF-Output
AM/FM/CW: 2-10 W, SSB: 25 W PEP

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8 V DC or mains
Current drain RX
?
TX
8 A max

Physical

Dimensions (w×h×d)
285 × 110 × 335 mm (11.22 × 4.33 × 13.19 in)
Weight
?
Form factor
Mobile
Manufactured
Between 2011 and 201x
MPN
RANGER-RHF-000618

Other features

Memories
99 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
NB / ANL
Split frequency
Programmable Repeater Offset
Roger beep
Echo chamber
4.3" TFT LCD display
Clock / calendar
Soft buttons
USB-socket with picture viewer and background image loader
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents
