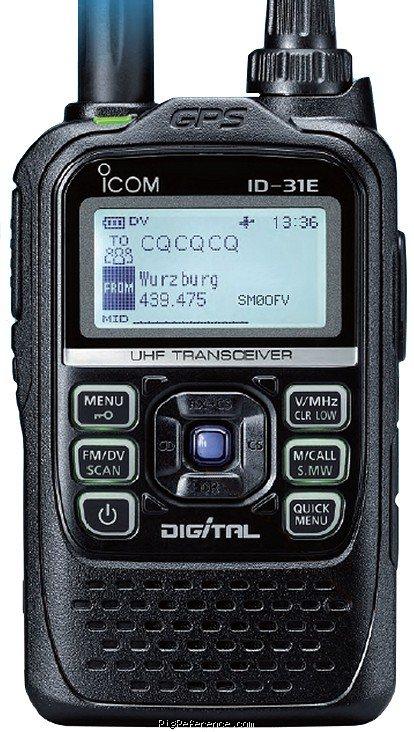

The Icom ID-31 first appeared at the Friedrichshafen Ham Radio Show in Germany June 24th, 2011. Icom managed to put D-STAR in a package small enough to fit in your hand.
This 440 MHz HT also supports conventional FM communication, is IPX7 waterproof and features a built-in GPS receiver.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 kHz
- Memories
- 1252 channels in 1 bank(s)
Receiver
- RX-range
- 400-479 MHz
- Modulations
- AM FM N-FM GMSK DV
- Sensitivity
- FM/NFM: 0.18 µV (12 dB SINAD)
DV: 0.28 µV (1% BER) - Selectivity
- FM: 55 dB
NFM/DV: 50 dB - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 400 mW
Transmitter
- TX-range
- 420-450 MHz
- Modulations
- FM N-FM GMSK DV
- RF-output
- 5 W max
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 5.5-7.4 V DC (Alkaline or battery pack) 10-16 V DC external
- Current drain RX
- 200-450 mA
- TX
- 2.5 A max
Physical
- Dimensions (w×h×d)
- 58 × 95 × 26 mm (2.28 × 3.74 × 1.02 in)
- Weight
- 225 gr (7.9 oz) with BP-271 and antenna
- Form factor
- Handheld
- Manufactured
- Between 2009 and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- D-Star concept
Built-in GPS
CTCSS / DTCS
Micro SD card slot
128×96 dot-matrix display
IPX7 waterproof - Accessories
- -
- RigReference ID
- 5518
- MPN
- ICOM-ID-000031A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM ID-31A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM ID-31A in Good condition is around:
- USD 225
- EUR 217
These estimates are based on the following prices:
