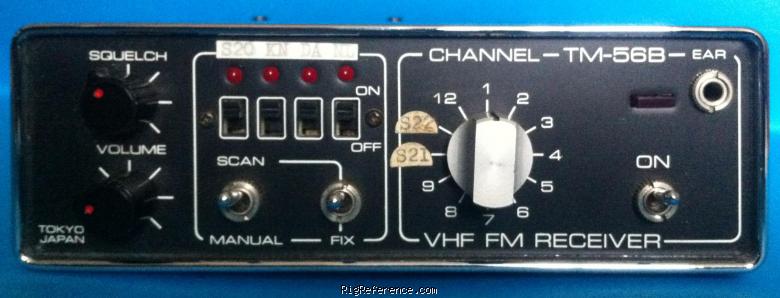

The FDK TM-56B is a 16-channel crystal controlled receiver covering 144-160 MHz. 4 Channels can be scanned or all 16 channels manually selected. This model was sold in the US as the Washu TM-56B.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 16 channels in 1 bank(s) @ 16 channels/second
Receiver
- RX-range
- 144-160 MHz
- Modulations
- FM
- Sensitivity
- 0.5 µV for 20dB S/N
- Selectivity
- ?
- Filters
- ?
- Receiver system
- XTAL
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains or 13.8V DC
- Current drain RX
- 200mA (squelched), 400mA at rated audio output
- TX
- -
Physical
- Dimensions (w×h×d)
- 139 × 47 × 187 mm (5.47 × 1.85 × 7.36 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5542
- MPN
- FDK-TM-000056B
Manuals, diagrams and brochures
-
No documents available for this particular model.
