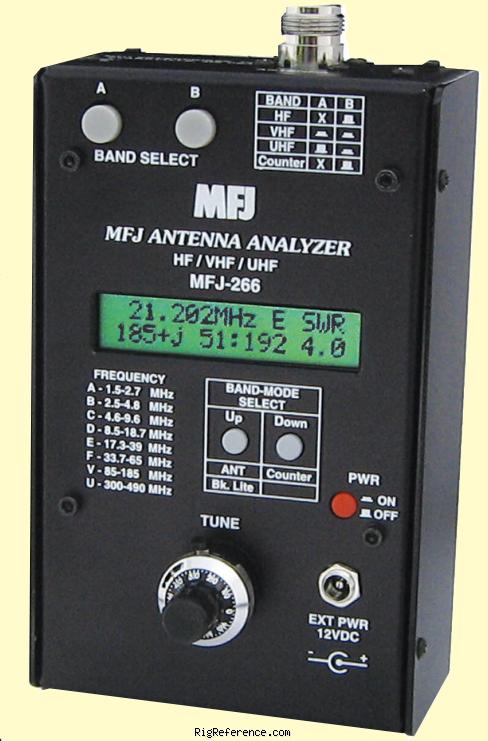

MFJ 266 HF/VHF/UHF SWR Analyser | Digital

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
1.5-185 / 300-490 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
All mode
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
N-type
Impedance
10-500Ω

Electrical

Power requirements
-
Current drain RX
30-140 mA
TX
-

Physical

Dimensions (w×h×d)
95 × 165 × 70 mm (3.74 × 6.50 × 2.76 in)
Weight
600 gr (1.3 lbs)
Form factor
Mobile
Manufactured
Between 20xx and 20xx
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Large LCD screen
Accessories
-
