MFJ 209 Handheld VHF SWR Analyser

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

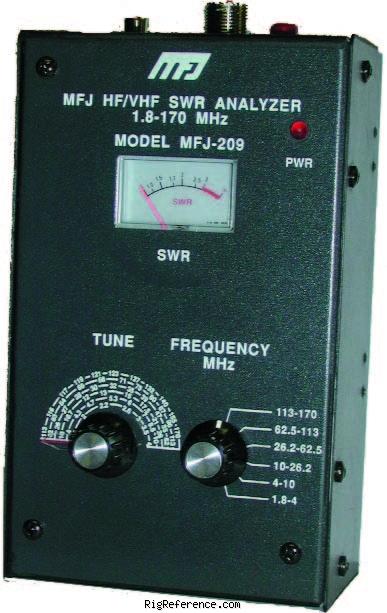

The MFJ-209 combines three basic circuits; a wide range oscillator, a 50 ohm RF bridge, and a calibrated bridge unbalance indicator. This combination of circuits allows measurement of the SWR (referenced to 50 ohms) of any load connected to the ANTENNA connector. Coverage: 1.8 - 4 MHz, 4 - 10 MHz, 10 - 26.2 MHz, 26.2 - 62.5 MHz, 62.5 - 113 MHz and 113 - 170 MHz.
