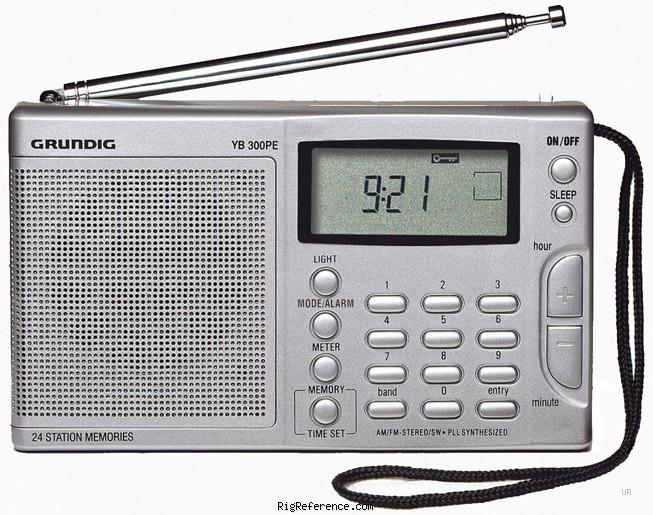

The Grundig YB-300 PE Professional Edition is another model in the Yacht Boy series. This model brings impressive features and performance to the under $100 price category.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 9 / 10 kHz
- Memories
- 24 channels in 1 bank(s)
Receiver
- RX-range
- AM 520-1710 kHz
SW 2.3-7.8 / 9.1-26.1 MHz
FM 87-108 MHz - Modulations
- AM FM W-FM Stereo
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- Built-in ferrite bar + Built-in telescopic
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 4.5 V DC / 3 × AA cells
- Current drain RX
- 400 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 150 × 90 × 30 mm (5.91 × 3.54 × 1.18 in)
- Weight
- 368 gr (13.0 oz)
- Form factor
- Handheld
- Manufactured
- Between 200x and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Direct keypad entry
Band button
Scanning
LCD display + backlight
Built-in clock
10-90 minute sleep time
DX-Local switch - Accessories
- -
- RigReference ID
- 5596
- MPN
- GRUNDIG-YACHT-BOY-000300-PE
Manuals, diagrams and brochures
-
No documents available for this particular model.
