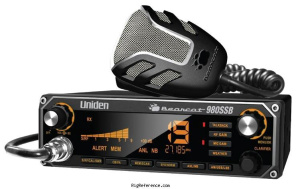

Uniden-Bearcat 980SSB

Mobile Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Uniden-Bearcat 980SSB rigs and spare parts on eBay Find the Uniden-Bearcat 980SSB on Amazon
We receive a small fee when you buy through these links, thank you!

The Uniden Bearcat 980SSB 40 channel CB radio operates in the normal AM mode and Single Sideband Mode (SSB). It features a stunning front panel with seven color selectable display back lighting. Plus you can adjust brightness and contrast independently. Everything for easy mobile operation has been considered and the 980SSB controls are easy to use. This radio even has a built-in diagnostic system that can check the antenna match, RF power and supply voltage. Other features include S/RF/CAL/SWR Meter, NOAA weather, frequency display, clarifier, noise blanker, mic gain, all channel scan, memory scan, RF gain, instant channel 9/19 and extra long mic cord. There is a PA - Public Address function if you add an external PA speaker (sold separately).

The Bearcat 980 is pre-configured for Uniden’s 6-pin wireless, noise canceling technology. Your Bearcat 980 comes with an adapter to connect the radio’s 6-pin microphone to a standard 4-pin microphone. The rear panel features a jack for external speaker and a jack for public address audio output. This radio comes with a 6 pin, wired noise-canceling mic, mobile bracket, DC power cord and mic clip. 6.3 x 2.2 x 6.3 inches. This radio requires 12 V DC at 2.2 Amps. Two year limited manufacturer's warranty.

Frequency range

RX-range
25.615-28.305 MHz
TX-range
25.615-28.305 MHz
HAM bands
11m (CB)
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   SSB
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
AM   SSB
RF-Output
?

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
?
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
216 × 89 × 381 mm (8.50 × 3.50 × 15.00 in)
Weight
1.80 kg (4.0 lbs)
Form factor
Mobile
Manufactured
Between 2012 and 20xx
MPN
UNIDEN-BEARCAT-000980SSB

Other features

Memories
40 channels in 1 bank(s)
Usage
Citizen Band (27Mc)
Features + options
Weather
Public Address
Backlit Display
Built-in SWR
Channel Scanning
Single Side Band (SSB)
Dynamike Boost
High SWR Indicator
Instant Channel 9/19
Noise Reduction (NB/ANL)
RF Gain
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Uniden-Bearcat 980SSB user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Uniden-Bearcat 980SSB. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Uniden-Bearcat 980SSB is around:

  • EUR 133.00
  • USD 68.00
Year Historic price Condition Submitted by
2019 EUR 134.00 New / Mint RigReference
2015 USD 72.00 Used / Good k0mixham@gmail.com
