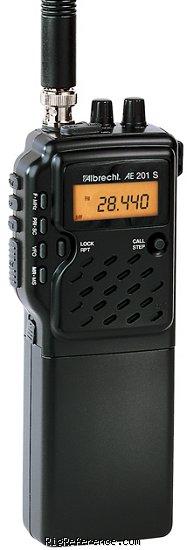

Albrecht AE-201S

Handheld Shortwave Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Albrecht AE-201S is a handheld transceiver. The frequency range is 28.0-29.7 MHz supporting AM/FM and SSB modulations. Maximum RF output is AM/FM 1 / 4 W, SSB: 1 / 7 W. Power requirements are 7.2-13.8 V DC. Image rejection is ≥ 70 dB. Current drain is 50 mA in receive mode and 1.2 A max in transmit mode. Dimensions are 169 × 63 × 39 mm. The radio weighs 400 gr.

General characteristics

HAM bands: 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 28.0-29.7 MHz
Modulations: AM FM SSB
Sensitivity: AM/FM: 1 µV (10 dB S/N)
SSB: 0.8 µV (10 dB S/N)
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ≥ 70 dB
Audio output: ?

Transmitter

TX-range: 28.0-29.7 MHz
Modulations: AM FM SSB
RF-output: AM/FM 1 / 4 W, SSB: 1 / 7 W

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.2-13.8 V DC
Current drain RX: 50 mA
TX: 1.2 A max

Physical

Dimensions (w×h×d): 63 × 169 × 39 mm (2.48 × 6.65 × 1.54 in)
Weight: 400 gr (14.1 oz)
Form factor: Handheld
Manufactured: Between 200x and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5891
MPN: ALBRECHT-AE-000201S

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
