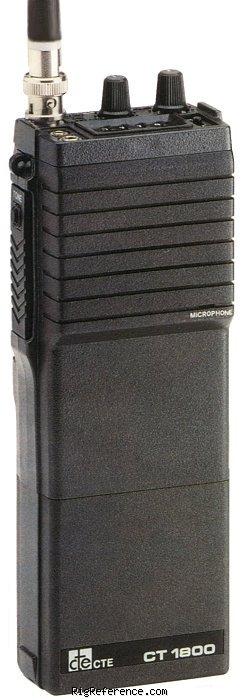

The CTE CT-1800 is a handheld VHF transceiver. It covers the 2 m band for both transmit and receive. Frequency stability is ± 1,5kHz with tuning steps of 10kHz by wheel and 5kHz including switch. RF output power is selectable between 0.15W (low) and 3W (high). The radio operates on a voltage range of 6-12V with a minimum usable voltage of 7.5V. Dimensions are 65 × 180 × 35 mm including battery.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ± 1,5kHz
- Tuning steps
- 10kHz by wheel, 5kHz including switch
- Memories
- ?
Receiver
- RX-range
- 2 m
- Modulations
- FM
- Sensitivity
- better than 0.5 µV @ 20dB SN
- Selectivity
- ± 7.5kHz at -6dB, ± 15kHz at -60dB
- Filters
- ?
- Receiver system
- Double superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 2 m
- Modulations
- FM
- RF-output
- 0,15W (lo), 3W (hi)
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 6-12V, usable: min 7.5V
- Current drain RX
- 20mA (with squelch), 130mA (full volume)
- TX
- 220mA (0.15W), 650mA (3W)
Physical
- Dimensions (w×h×d)
- 180 × 65 × 35 mm (7.09 × 2.56 × 1.38 in) Including battery
- Weight
- 470 gr (1.0 lbs) Inclusing battery and antenna
- Form factor
- Handheld
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5895
- MPN
- CTE-CT-001800
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used CTE CT-1800. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the CTE CT-1800 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
