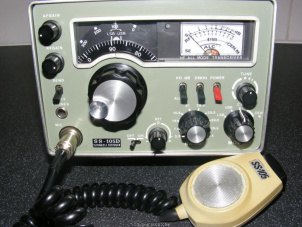

Shimizu Denshi SS-105S

Compact QRP | 10 W

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Shimizu Denshi SS-105S rigs and spare parts on eBay Find the Shimizu Denshi SS-105S on Amazon
We receive a small fee when you buy through these links, thank you!

The Shimizu Denshi SS-105S was offered as a "semi kit". The main board was pre-built and pre-aligned while the final assembly was done by the user.

Frequency range

RX-range
80-10 m
TX-range
80-10 m
HAM bands
?
Stability
?
Tuning steps
Analogue (1 kHz readout)
Filters
?

Receiver

Modulations
FM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM   CW   USB   LSB
RF-Output
10 W

Connections

Antenna
-
Impedance
50Ω

Electrical

Power requirements
?
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 1982 and 1984 in Japan
MPN
SHIMIZU-DENSHI-SS-000105S

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
RIT
CW filter optional
FM optional
Noise filter optional
Accessories
?

Manuals, diagrams and brochures

Shimizu Denshi SS-105 Manual submitted by RigReference
Shimizu Denshi SS-105 Assembly manual submitted by RigReference
Shimizu Denshi SS-105S Schematic diagram submitted by RigReference
