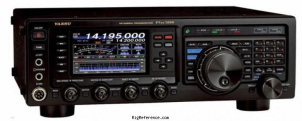

Yaesu FTdx1200 Desktop Shortwave Transceiver

 (5.0/5)  Add a story   View all stories (2)   Add to my shack



Login or Register to upload images

High performance HF + 6 meter transceiver, introduced at the 2013 Dayton Hamvention. The rig has a 32-bit high speed floating point DSP unit. A 4.3-in TFT color display provides the operator with loads of information.

The optional SCU-17 USB-interface unit adds support for CAT, USB-Audio in/out, TX control (PTT, Key, Shift) and firmware update functions.

Frequency range

RX-range
30 kHz - 56 MHz
TX-range
160-6 m
HAM bands
-
Stability
± 0.5 p.p.m. (after 1 minute warmup)
Tuning steps
1 / 2 / 10 / 100 Hz
Filters
3 / 6 / 15 kHz Roofing Filters

Receiver

Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
Sensitivity
SSB (BW: 2.4 kHz, 10 dB S+N/N)
0.16 µV (1.8-30 MHz)
0.125 µV (50-54 MHz)

AM (BW: 6 kHz, 10 dB S+N/N, 30% modulation @ 400 Hz)
2 µV (0.5-1.8 MHz
2 µV (1.8-30 MHz)
1 µV (50-54 MHz)

FM (BW: 15 kHz, 10 SINAD)
0.5 µV (28-30 MHz)
0.35 (50-54 MHz)
Selectivity
CW/RTTY/PKT: 0.5 kHz @ -6 dB, 0.75 kHz @ -60 dB
SSB: 2.4 kHz @ -6 dB, 3.6 kHz @ -60 dB
AM: 6 kHz @ -6 dB, 15 kHz @ -60 dB
FM: 12 kHz @ -6 dB, 30 kHz @ -60 dB
Receiver system
Triple conversion super-heterodyne + 32 Bit High Speed IF DSP
IF-frequencies
1st: 40.455 MHz (up-conversion)
2nd: 455 kHz
3rd: 30 kHz (24 kHz for AM/FM)
IF Width & IF Shift
Image rejection
≥ 70 dB (160-10 m) ≥ 60 dB (6 m)
Audio output
2.5 W into 4 ohms @ 10% THD

Transmitter

Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
RF-Output
5 ~ 100 W (AM: 2 ~ 25 W)

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8 V DC
Current drain RX
1.8-2.1 A
TX
23 A max

Physical

Dimensions (w×h×d)
-
Weight
9.50 kg (21.0 lbs)
Form factor
Base Station
Manufactured
Between 2013 and 20xx
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
4.3 in TFT full color display
Automatic Tuner
Contour, DNR, IF Notch and APF
Spectrum Scope
Optional SCU-17 USB Interface Unit
Optional FFT Unit
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

zeer goede ontvanger

Yaesu FTdx1200, Desktop Shortwave Transceiver

Zeer goede modulatie,goede tuner ook met draadantenne

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2014
EUR 1600.00

just amazing

Yaesu FTdx1200, Desktop Shortwave Transceiver

The Receiver is so good. you could alligator clip this thing to your gutters and it will pick out audio better than a 746PRO using a beam 40' up. its beautiful, sophisticated, intuitive, well made.... You can tell the engineers poured their heart and soul into this, as i am sure they designed as something themselves really wanted to use! and could afford! -- You can't go wrong with this.

Written by Charles on Apr 22, 2015

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2015
USD 0.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Yaesu FTdx1200. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Yaesu FTdx1200 might be around:

  • USD 876.00
Price Condition Year User
USD 899.00 New / Mint 2016 DogMogHam
USD 880.00 Used / Mint 2017 Rodgerzk
