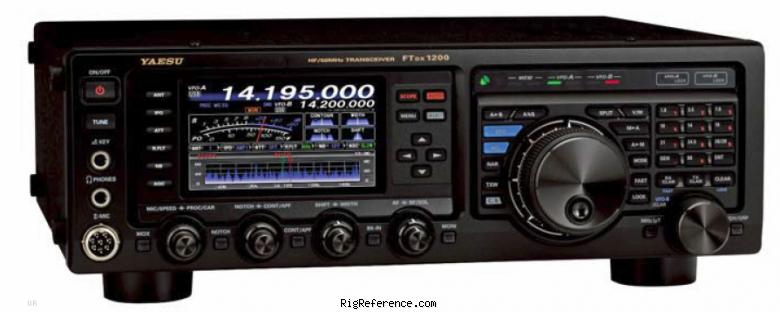

High performance HF + 6 meter transceiver, introduced at the 2013 Dayton Hamvention. The rig has a 32-bit high speed floating point DSP unit. A 4.3-in TFT color display provides the operator with loads of information.

The optional SCU-17 USB-interface unit adds support for CAT, USB-Audio in/out, TX control (PTT, Key, Shift) and firmware update functions.

General characteristics

HAM bands
6m
Frequency stability
± 0.5 p.p.m. (after 1 minute warmup)
Tuning steps
1 / 2 / 10 / 100 Hz
Memories
?

Receiver

RX-range
30 kHz - 56 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
Sensitivity
SSB (BW: 2.4 kHz, 10 dB S+N/N)
0.16 µV (1.8-30 MHz)
0.125 µV (50-54 MHz)

AM (BW: 6 kHz, 10 dB S+N/N, 30% modulation @ 400 Hz)
2 µV (0.5-1.8 MHz
2 µV (1.8-30 MHz)
1 µV (50-54 MHz)

FM (BW: 15 kHz, 10 SINAD)
0.5 µV (28-30 MHz)
0.35 (50-54 MHz)
Selectivity
CW/RTTY/PKT: 0.5 kHz @ -6 dB, 0.75 kHz @ -60 dB
SSB: 2.4 kHz @ -6 dB, 3.6 kHz @ -60 dB
AM: 6 kHz @ -6 dB, 15 kHz @ -60 dB
FM: 12 kHz @ -6 dB, 30 kHz @ -60 dB
Filters
3 / 6 / 15 kHz Roofing Filters
Receiver system
Triple conversion super-heterodyne + 32 Bit High Speed IF DSP
IF-frequencies
1st: 40.455 MHz (up-conversion)
2nd: 455 kHz
3rd: 30 kHz (24 kHz for AM/FM)
IF Width & IF Shift
Image rejection
≥ 70 dB (160-10 m) ≥ 60 dB (6 m)
Audio output
2.5 W into 4 ohms @ 10% THD

Transmitter

TX-range
160-6 m
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
RF-output
5 ~ 100 W (AM: 2 ~ 25 W)

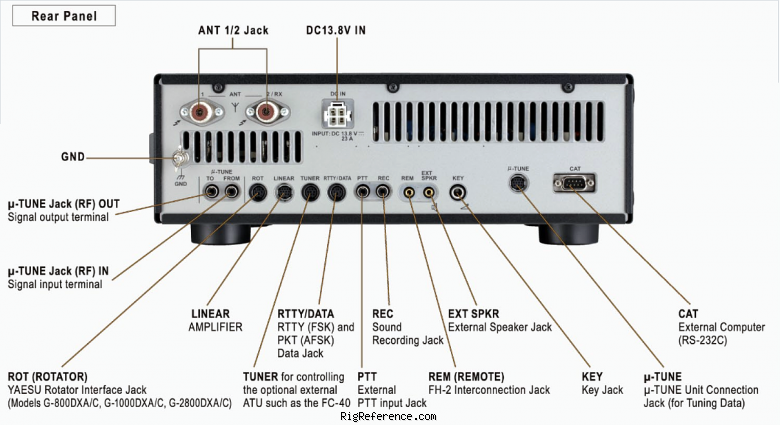

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
1.8-2.1 A
TX
23 A max

Physical

Dimensions (w×h×d)
?
Weight
9.50 kg (21.0 lbs)
Form factor
Base Station
Manufactured
Between 2013 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
4.3 in TFT full color display
Automatic Tuner
Contour, DNR, IF Notch and APF
Spectrum Scope
Optional SCU-17 USB Interface Unit
Optional FFT Unit
Accessories
-
RigReference ID
5913
MPN
YAESU-FTDX001200

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
just amazing 5 years ago by Charles
zeer goede ontvanger 5 years ago by degroote.luc

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTdx1200. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTdx1200 is around:

  • USD 858.00 ~ USD 865.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2017 USD 880.00 Used / Mint Rodgerzk
2016 USD 899.00 New / Mint DogMogHam
