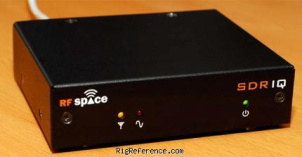

The SDR-IQ™ is a 14-bit software defined radio receiver. It offers a broad range of spectrum analyzer and demodulation capabilities. The hardware samples the whole 0.0001-30 MHz band using a high performance, 14 bit analog to digital converter (ADC) running at 66.6 MHz. The digital data from the ADC is processed into I and Q format using a direct digital converter (DDC). The I and Q data is then sent to the PC for processing using a USB 2.0 interface. All of the demodulation and spectral functions are done on the PC side.
Price when new in 2013 starting at USD 525.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m 2000m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Receiver
- RX-range
- 100 Hz - 30 MHz
- Modulations
- AM N-FM W-FM CW SSB USB DSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 80 dB+ (Typ)
- Audio output
- ?
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 5 Volts (USB port powered)
- Current drain RX
- 425 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 95 × 32 × 95 mm (3.74 × 1.26 × 3.74 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 2013 and 201x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- USB 2.0
RS-232
Processor: Atmel AT91SAM7S256 w/ JTAG port - Accessories
- -
- RigReference ID
- 5935
- MPN
- RFSPACE-SDR-IQ
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RFspace SDR-IQ. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the RFspace SDR-IQ in Good condition is around:
- EUR 333
These estimates are based on the following prices:
