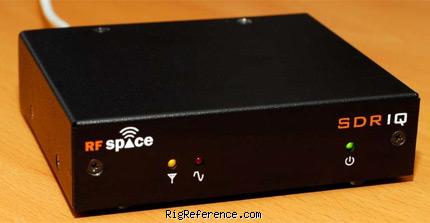

The SDR-IQ™ is a 14-bit software defined radio receiver. It offers a broad range of spectrum analyzer and demodulation capabilities. The hardware samples the whole 0.0001-30 MHz band using a high performance, 14 bit analog to digital converter (ADC) running at 66.6 MHz. The digital data from the ADC is processed into I and Q format using a direct digital converter (DDC). The I and Q data is then sent to the PC for processing using a USB 2.0 interface. All of the demodulation and spectral functions are done on the PC side.
Price when new in 2013 starting at USD 525.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m 2000m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 100 Hz - 30 MHz
- Modulations
- AM N-FM W-FM CW SSB USB DSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 80 dB+ (Typ)
- Audio output
- ?
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 5 Volts (USB port powered)
- Current drain RX
- 425 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 95 × 32 × 95 mm (3.74 × 1.26 × 3.74 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 2013 and 201x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- USB 2.0
RS-232
Processor: Atmel AT91SAM7S256 w/ JTAG port - Accessories
- -
- RigReference ID
- 5935
- MPN
- RFSPACE-SDR-IQ
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RFspace SDR-IQ. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the RFspace SDR-IQ is around:
- EUR 100.00
These estimates are based on the following prices:
