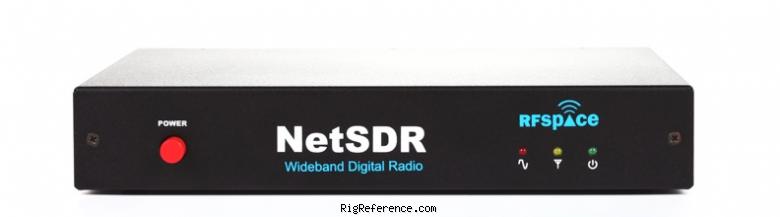

RFspace NetSDR

SDR receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The NetSDR radio is a high performance networked SDR with 1.6 MHz bandwidth. The NetSDR uses a high performance 80 MHz, 16 bit ADC with both dithering and randomization for best performance. The output I/Q bandwidth is configurable via software. PC communications are handled over a 100 base-T port using 24 or 16 bit I/Q words.

Price when new in 2013 starting at USD 1449.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10 kHz - 32 MHz
Modulations: AM N-FM W-FM CW SSB USB DSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 80 dB+ (Typ)
Audio output: ?

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 5 Volts
Current drain RX: 1.5 A
TX: -

Physical

Dimensions (w×h×d): 228 × 38 × 180 mm (8.98 × 1.50 × 7.09 in)
Weight: ?
Form factor: Base Station
Manufactured: Between 20xx and 20xx in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: Ethernet 100 Base-T
RS-232
Accessories: -
RigReference ID: 5936
MPN: RFSPACE-NETSDR
