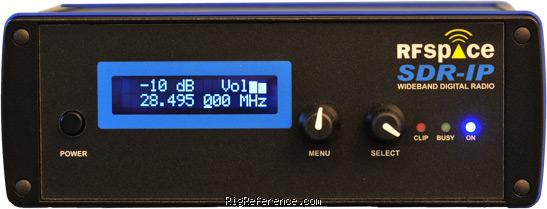

The high performance SDR-IP is an internet protocol (TCP/IP) software defined receiver with 1.8 MHz bandwidth. It offers the ultimate versatility for scientific research, radio astronomy, shortwave listening and amateur radio. The SDR-IP uses a high performance 80 MHz, 16 bit ADC with both dithering and randomization for best performance. The output I/Q bandwidth is configurable via software. PC communications are handled over a 100 base-T port using 24 or 16 bit I/Q words.
New price in 2013 starting at USD 3000.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.01 - 34 MHz
- Modulations
- AM N-FM W-FM CW SSB USB DSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- SDR
- IF-frequencies
- ?
- Image rejection
- 80 dB+ (Typ)
- Audio output
- ?

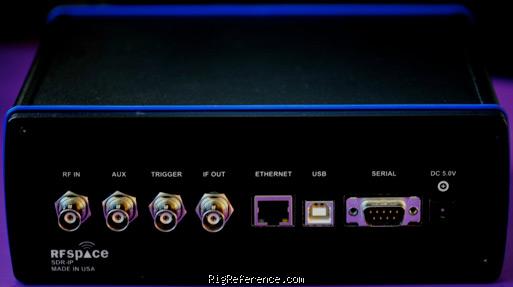

Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 5 Volts
- Current drain RX
- 1.5 A
- TX
- -
Physical
- Dimensions (w×h×d)
- 210 × 70 × 180 mm (8.27 × 2.76 × 7.09 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 20xx and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Ethernet 100 Base-T
RS-232
16 × 2 Character LCD - Accessories
- -
- RigReference ID
- 5937
- MPN
- RFSPACE-SDR-IP
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RFspace SDR-IP. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the RFspace SDR-IP is around:
- USD 140 ~ USD 260
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
