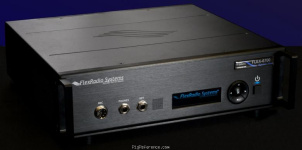

FlexRadio FLEX-6500 SmartSDR transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Price when new in 2013: USD 4300. Part of the FLEX-6000 signature series with SmartSDR.

Frequency range

RX-range
30 kHz – 77 MHz
TX-range
160-6 m
HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Stability
0.5 p.p.m. TCXO
Tuning steps
1 Hz
Filters
-

Receiver

Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
Sensitivity
-
Selectivity
-
Receiver system
SDR, Direct Digital Sampling
IF-frequencies
-
Image rejection
≥ 100 dB
Audio output
1W diagnostic speaker

Transmitter

Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
RF-Output
1-100W SSB, CW, FM, RTTY, DIGITAL; 1-30W AM

Connections

Antenna
BNC + SO-239
Impedance
5-500Ω

Electrical

Power requirements
13.8V DC ± 15%
Current drain RX
1.5 A
TX
23 A

Physical

Dimensions (w×h×d)
330 × 305 × 102 mm (12.99 × 12.01 × 4.02 in) with feet
Weight
5.90 kg (13.0 lbs)
Form factor
Headless
Manufactured
Between 2013 and 20xx in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
SDR (Software Defined Radio)
Ethernet

CPU / DSP: TMS320DM8168CYG2
RISC processor: 1.2 GHz ARM CortexTM-A8/NEONTM
DSP processor: 1.0 GHz TMS320C647x 32-bit FP
DSP Floating Point Operations: 78 GFLOPS
Accessories
-
