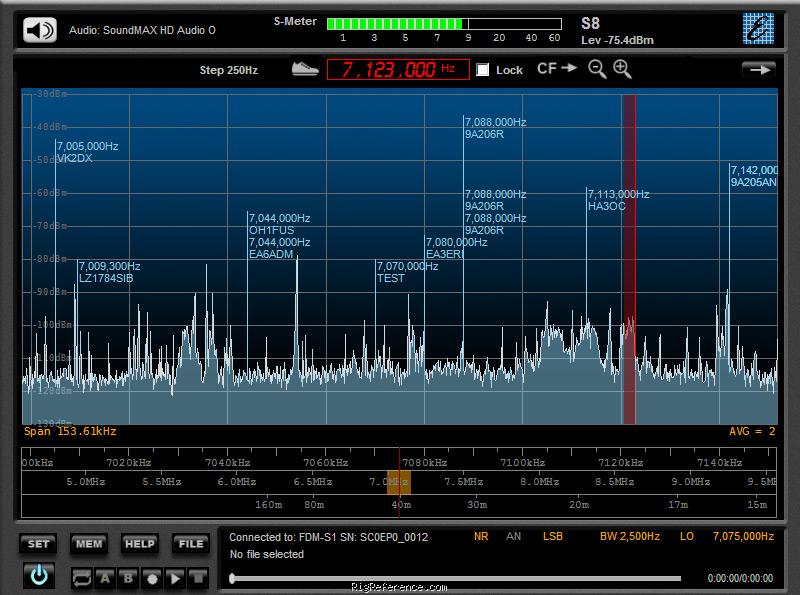

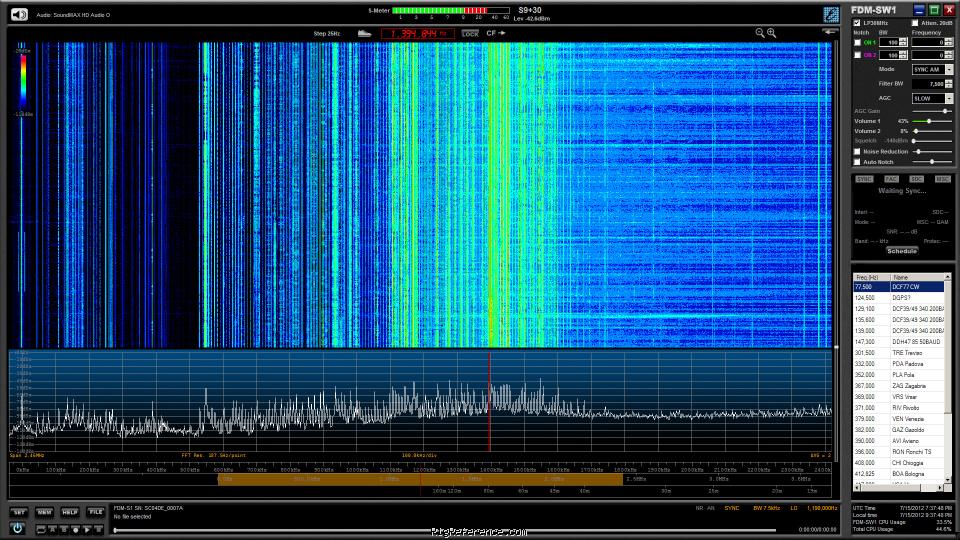

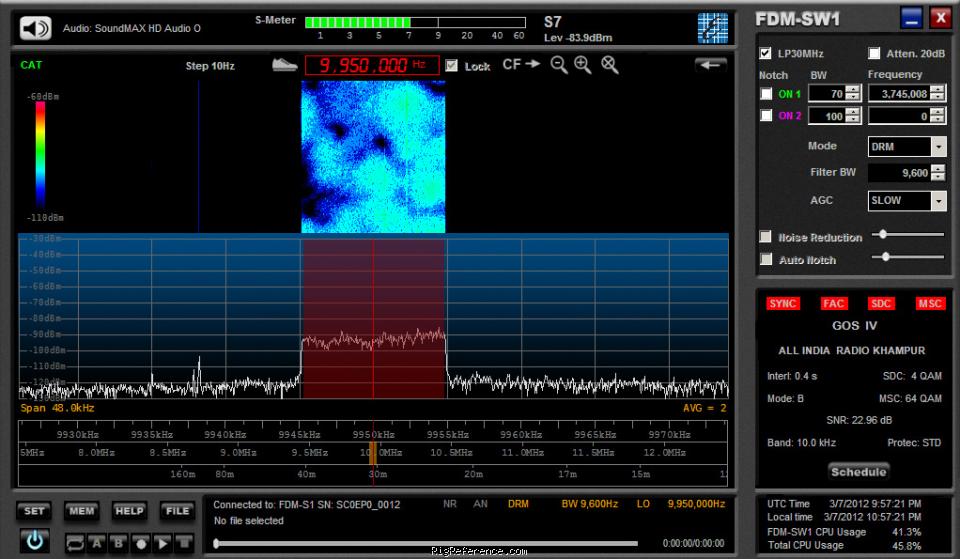

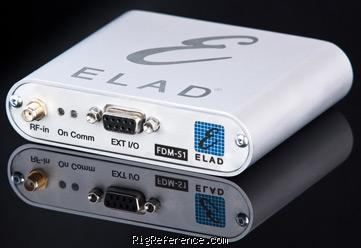

FDM-S1 is an HF DIrect Conversion Receiver working with ADC at 61.44 MHz sampling frequency and an FPGA to convert to a stream I/Q data to 192,384,768,1536 and 3072 kHz I/Q channels, 32 bit/sample and 6144 kHz I/Q channels,16 bit/sample throught USB 2.0 connections. The device can be used as sampler for experiment downsampling use taking advantage of the 200MHz front-end of the A/D converter. FDM-S1 is powered by USB connection due to less than 2,2 W power consumption. In congiuntion with the FDM-SW1 software included it is possible to demodulate CW, LSB, USB, DSB, AM, SAM, DRM, FM e WFM signals. FDM-SW1 software include DRM decoder so no need to use external software. Compact size 90x108x27mm, come with BNC to SMA adapter, USB cable, CD and safe bag.
Price when new in 2013: EUR 429.
